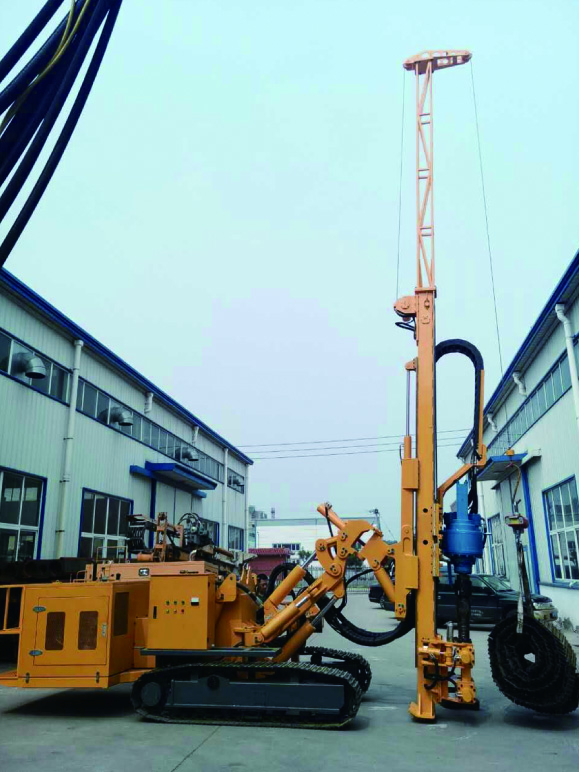

D-180B Anchor Drilling Rig


D-180B Anchor Drilling Rig


\


The D-180B drill rig is diesel engine powered lightweight anchor drill rig used for diverse drilling techniques for anchor drilling projects, such as auger drilling, single pipe drilling, dual pipe drilling and self-drill anchor drilling.


Model D-180B
Power parameter
Power type Diesel powered
Max. power output KW CUMMINS 6BTA5.9-C180 132
Mode of operation Rotary/Percussive
Electric system (V) 24
Fuel tank capacity (L) 380
1st circuit operating pressureMpa 0-24
2nd circuit operating pressureMpa 0-24
3th circuit operating pressureMpa 0-25
Hydr. oil tank capacity (L) 450
Feed strokemm 3500
Feed forceKN 35
Retraction forceKN 65
Feed rate (m/min) Low 0-22
High 0-61
Retraction rate (m/min) Low 0-11
High 0-31
Percussion frequency (Times/min) 0-1250
Max. torque (N·m) 13000
Rotating (r/min) 0-40  0-56
0-60   0-80
0-85  0-112
0-120  0-165
Transport dimensions (L*W*H)mm 6700*2000*2600
