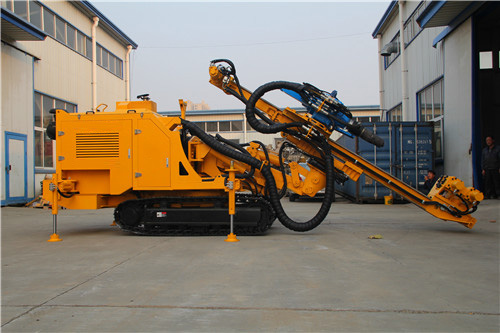

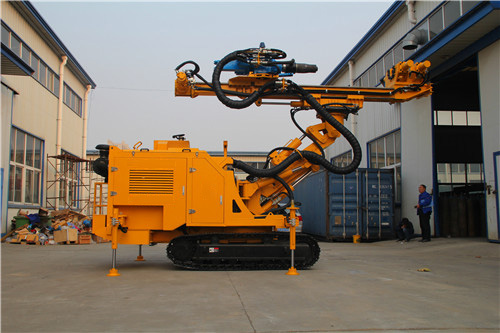

Z-1250 Anchor Drilling Rig


Z-1250 Anchor Drilling Rig

\


\



Description

Z-1250 drill rig is designed for working in narrow spaces, such as tunnel, culver and foundation ditch. With its rotating-percussion rotary head, it is suitable for drilling in stratum formations of sticky clay, sandstone as well as partially decomposed rock stratum. With down-the-hole hammer, it can drill in hard rock formation efficiently. The emission standard of its power engine is TIERIII. With 360 degree horizontal and vertical rotating tables, it can be used efficiently for drilling holes to front facet, flank facet as well as ceiling of tunnels. In the operation panel, there is a special designed operation handle for shifting to grout jetting drilling technique, with suitable rotating and pull back speed for high efficiency grout jetting.


Specification

Model Z-1250
Power parameter
Engine CUMMINS QSB4.5-C160 III
Max. power output KW 123
Rated output at 220 rpm (KW) 119
Electric system (V) 24
Fuel tank capacity (L) 200
1st circuit operating pressureMpa 0-22
2nd circuit operating pressureMpa 0-22
3th circuit operating pressureMpa 0-20
Hydr. oil tank capacity (L) 400
Feed strokemm 2500
Feed forceKN 50
Retraction forceKN 50
Feed rate (m/min) 0-10
Retraction rate (m/min) 0-10
Fast feed rate (m/min) 0-50
Fast retraction rate (m/min) 0-50
Rotary spray lifting speed (m/min) 0-2.8 (Adjustable)
Mode of operation Rotary/Percussive
Percussion frequency (Times/min) 0-1150
Max. torque at high speed (N·m) 6000/4250
Max. torque at low speed (N•m) 12000/8500
High rotating speed (r/min) 0-92 0-144
/ 0-64 0-100
Low rotating speed (r/min) (Adjustable) 0-46 0-72
/ 0-32 0-50
Transport dimensions (L*W*H)mm 5900 * 1500 * 2850
WeightKg 8500
