Auger Drill Rig

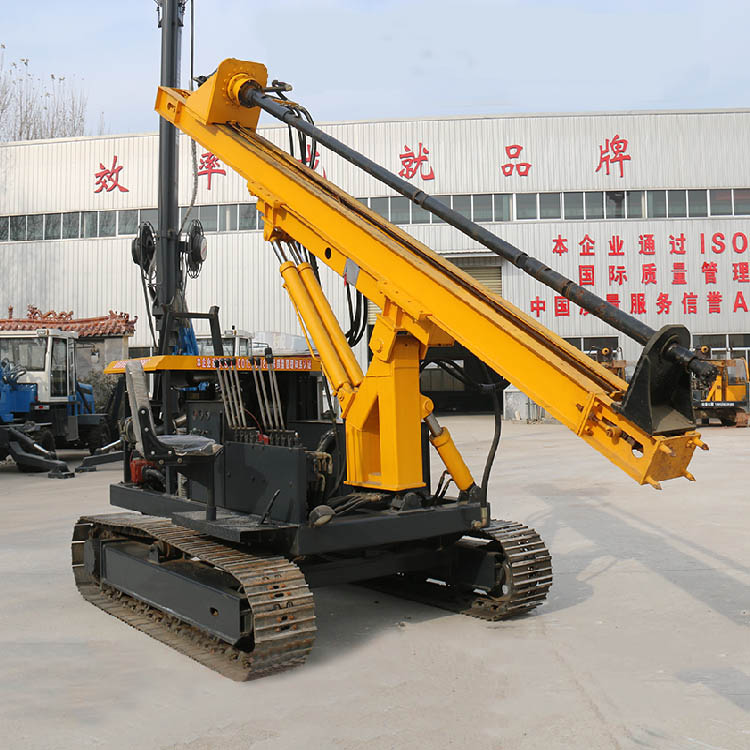

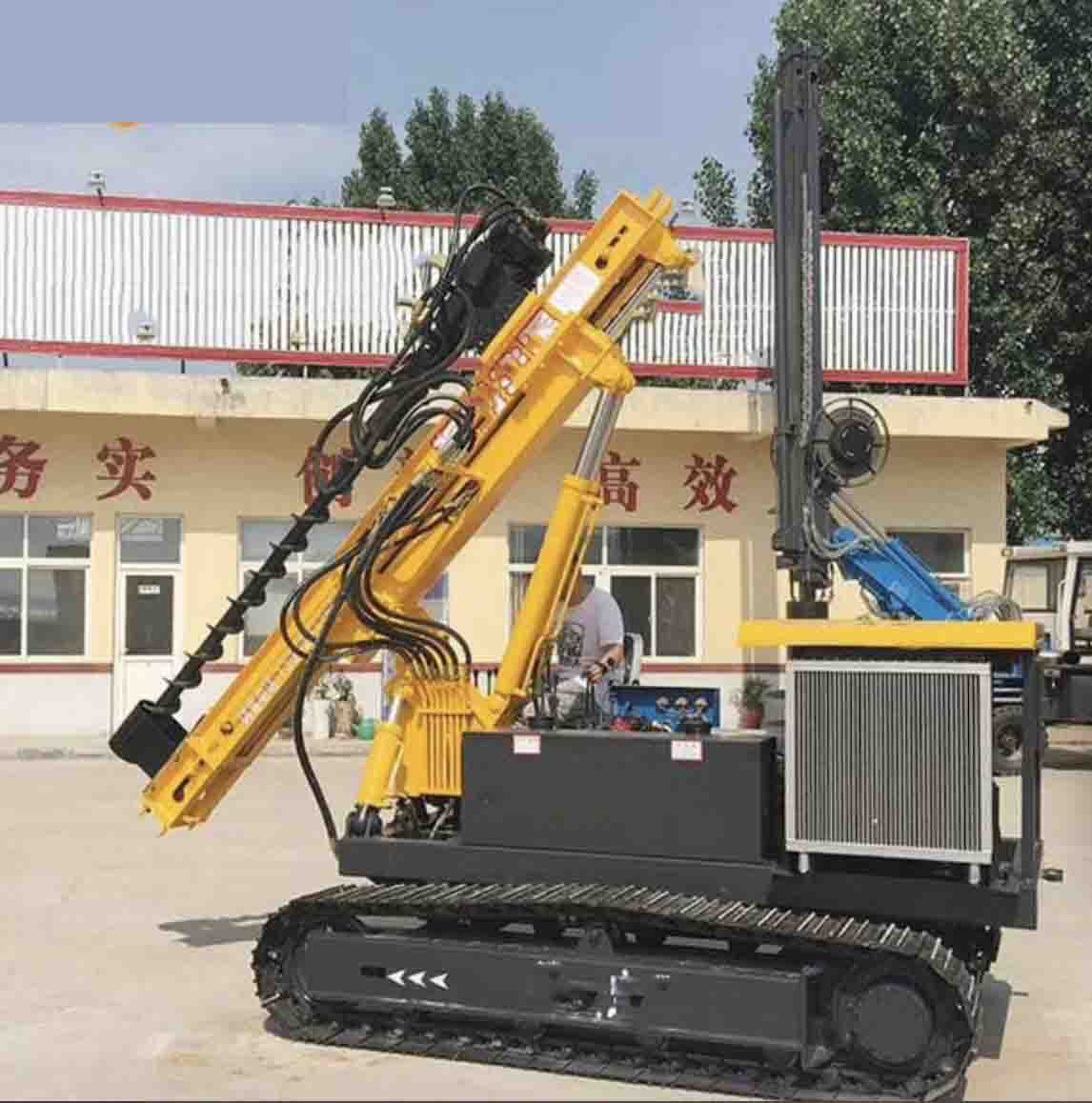

TL135-3 Crawler Auger pile drill rig


TL135-3 Crawler Auger pile drill rig


\


Pile driver model TL135-3
Diesel engine power(kw) 88
Generator output power(kw)
main motor power(kw)
Chassis model 6T
Overall dimensions: length, width and height(mm) 4600*2000*2800
Machine weight(T) 4
Track width(mm) 3500
Mast tilt angle(°) forward and back: 30 left and right:≥30
System pressure(Mpa) 16-22
System traffic(Mpa) 20-30
Drilling depth(m) 6
Drilling diameter(mm) 150-400
Drive mode hydraulic drive
Walking way Mechanical hydraulic walking
Driving speed(km/h) 5月15日
Grade ability (°) 30
Work size: length, width and height(mm) 2800*2000*4600
Transport dimensions: length and breadth(mm) 4600*2100*2900
Mailbox Capacity(L) Fuel oil 60, hydraulic oil 75
Working radius(mm)
Drilling speed(m/min) 0.5-2.5
Pull drill capacity(T) 3.5
Drilling speed(m/min) 15
Rotation angle
