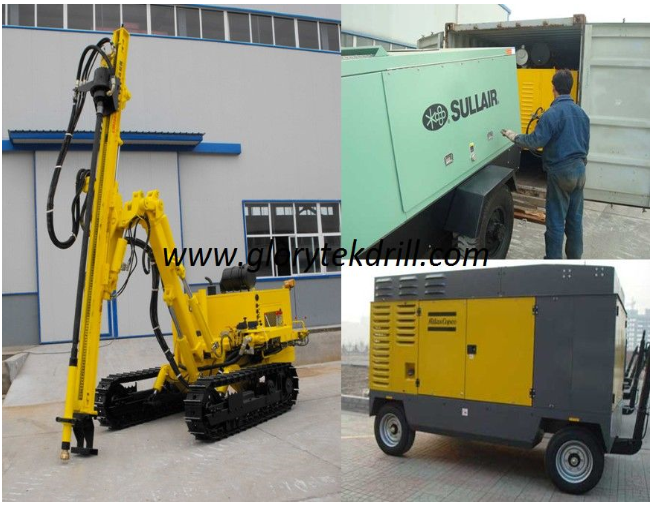

358A(D) Crawler Hydraulic DTH Drilling rig

358A(D) Crawler Hydraulic DTH Drilling rig


\



358A crawler hydraulic down-hole drill rig adopts diesel motor (electric motor). Hydraulic oil pump unit offers power to hydraulic motor moving, turn-around, propulsion and lifting, and angle orientation of oil cylinder, etc, when drill is working, only the down-hole hammer consumes the compressed air, compared with whole-pneumatic drills, the consumption of energy(fuel or electricity) is saved by 40% to 50%.

358ADcrawler hydraulic down-hole drill rig is mainly used in stonework drilling, such as water and electricity project, exploitation of open mine and road construction.



Main Technical Parameters
Drilling diameter Φ90-Φ165mm
Drilling depth 40m
Moving speed 2km/h
Applicable rock hardness =6—20
Working air pressure 1.2—2.4MPa
Air consumption 11.3m³/min(1.4MPa) for pore diameterΦ115
13m³/min(1.4MPa) for pore diameterΦ140
17m³/min(1.4MPa) for pore diameterΦ165
21m³/min(2.4MPa for pore diameterΦ165
25m³/min(2.4MPa) for pore diameterΦ165
Pipe-rod changing length 3m
Outer size(length*width*height) 6900×2200×2200mm(Transportation state)
Grade ability 24°
Power (Diesel drive or electric drive) Internal combustion 56KW(Yuchai Brand, Cummins is optional) Electric motor 30KW
weight 6100kg
