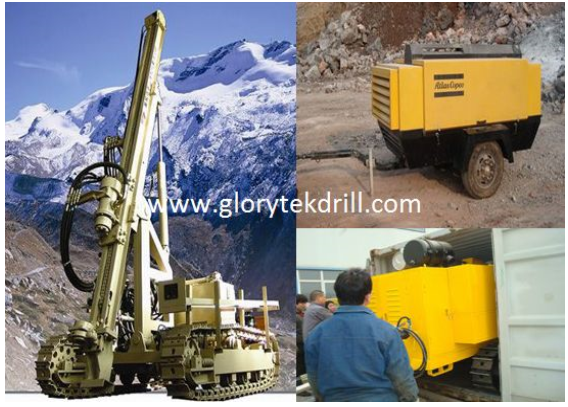

GL90Y Low & Medium Pressure Hydraulic Drilling Rig
◆Name: Low & Medium Pressure Hydraulic Drill Rig
◆Feature: Simple structure、Small size、Light、Flexible. Low noise、Powerful force、High efficiency
◆Application: Drilling work at site with restricted space. Suitable for the small mining areas in the productivities of 200,000m3 annually, or serves as the auxiliary equipment of the large or medium mining area to drill the side hole.
| Main Technical Parameter | |
| Hole diameter | Φ70-Φ120MM |
| Hole Angle | 0-90° |
| Hole Depth | 25m downward,35mhorizontal |
| Torque | 983N. M |
| Lifting Capacity | 20KN |
| Once Feed distance | 3m |
| Air pressure | 0.7-1.2Mpa |
| Grade ability | 20° |
| Air consumption | 7-13m³/Min |
| Power(Diesel drive) | 20Kw or 24Kw (Yuchai brand, Cummins is optional) |
| Drilling rate | 3 -8 times than the speed of other similar type drill rig, capable to drill the hole at the speed of 8-16m/h with the rock rigidity f=8-14 |
| Total weight | 3500kg |
