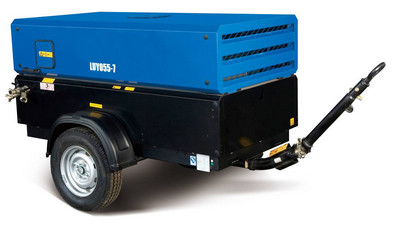

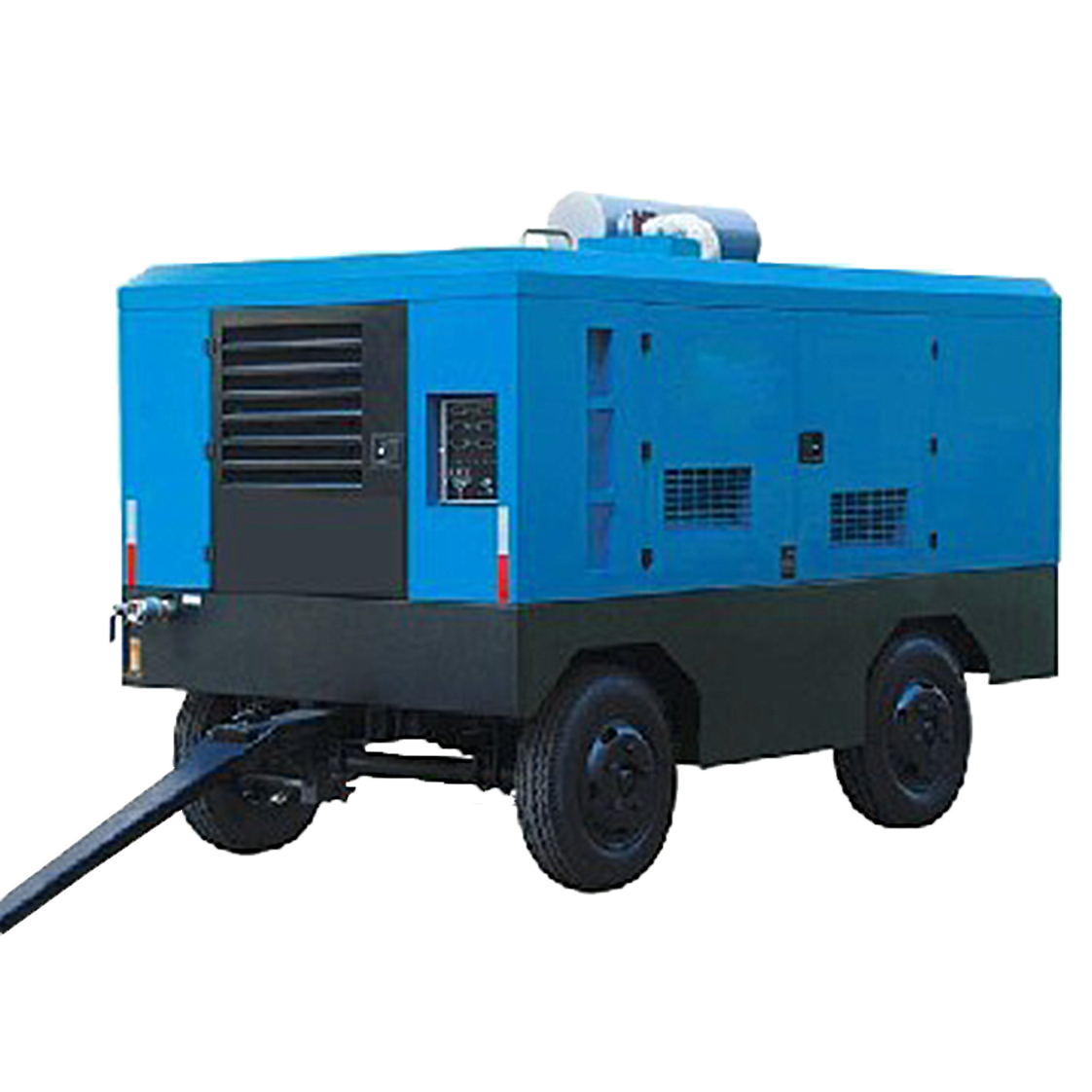

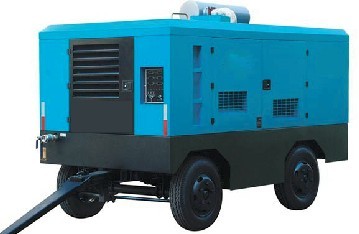

GLORYTEK LUY Series Portable Diesel Driven Air Compressor
Diesel Driven Compressors Technical Data
Model
LUY025-7
LUY036-7
LUY050-7
LYU055-7
LUY079-7
LUY085-14
LUY100-10
LUY100-12
LUY108-7
LUY118-7
Free air delivery
2.5
3.6
5
5.5
7.9
8.5
10
10
10.8
11.8
Working pressure
bar(e)
7
7
7
7
7
14
10
12
7
7
max./min.Working speed
rpm
3000-2400
2700-1500
2800-1500
2750-1850
2000-1400
2300-1430
Noiselevel(soundpressure)
at 7m distance
dB(A)
<70
<80
<70
77+/-3
78+/-3
Capacity of fuel tank
L
32
80
80
185
185
Air outlet valves-qty x size
inches
2*G3/4
2*G3/4
3*G3/4
1*G3/4
1*G1 1/2
1*G3/4
1*G1 1/2
Length with towing device(min.)
mm
2729
2821
2200
2862
2862
Length with horizontal towbar
mm
2953
2821
3100
3651
3651
Width
mm
1280
1470
1400
1790
1790
Height
mm
1205
1361
1280
1908
1908
Operational weight(full fuel tank)
kg
556
652
688
960
1500
1680
Engine
Manufacturer
KUBOTA
YTO
YTO
DEUTZ
CUMMINS
CUMMINS
Engine type
D1105
YND485G
YND490G
D2011L03
4BT3.9-C80
4BTAA3.9-C130
Cylinders
3
3
3
4
4
4
Output at nominal speed
kW
19.4
22
32
36
60
97
HP
26
30
43
49
80
130
Diesel Driven Compressors Technical Data | |||||||||
Modle | LUY120-14 | LUY130-17 | LUY170-13 | LYU184-12 | LUY202-10 | LUY214-9 | LUY239-7 | LUY230-14 | |
Free air delivery | 12 | 13 | 17 | 18,4 | 20,2 | 21,4 | 23,9 | 23 | |
Working pressure | bar(e) | 14 | 17 | 15 | 12 | 10 | 8,6 | 7 | 14 |
max./min.Working speed | rpm | 2300-1270 | 2200-1450 | 2200-1400 | 2000-1400 | ||||
Noiselevel(soundpressure) at 7m distance | dB(A) | 78+/-3 | 79+/-3 | 79+/-3 | 79+/-3 | ||||
Capacity of fuel tank | L | 250 | 350 | 495 | |||||
Air outlet valves-qty x size | inches | 1*G2 | 1*G2 | 1*G2 | |||||
1*G3/4 | 1*G3/4 | 1*G3/4 | |||||||
Length with towing device(min.) | mm | 3525 | 3525 | 4210 | |||||
Length with horizontal towbar | mm | 4550 | 4550 | 5260 | |||||
Width | mm | 1770 | 1770 | 1800 | |||||
Height | mm | 2230 | 2230 | 2631 | |||||
Operational weight(full fuel tank) | kg | 3100 | 3500 | 3500 | 4600 | ||||
Engine | |||||||||
Manufacturer | CUMMINS | CUMMINS | CUMMINS | ||||||
Engine type | 6BTA5.9-C180 | 6BTAA5.9-C205 | 6CTAA8.3-C240 | 6LTAA8.3-C315 | |||||
Cylinders | 6 | 6 | 6 | ||||||
Output at nominal speed | kW HP | 132 | 153 | 179 | 232 | ||||
180 | 205 | 240 | 311 | ||||||
Modle | LUY250-12 | LUY270-10 | LUY290-9 | LYU180-19 | LUY215-21 | LUY213-17 | LUY300-17 | LUY330-21 | |
Free air delivery | 25 | 27 | 29 | 18 | 21,8 | 23,1 | 30 | 33 | |
Working pressure | bar(e) | 12 | 10 | 8,6 | 19 | 21 | 17 | 25 | 21 |
max./min.Working speed | rpm | 2000-1400 | 2200-1400 | 2000-1400 | 1600-1100 | ||||
Noiselevel(soundpressure) at 7m distance | dB(A) | 79+/-3 | 79+/-3 | 74+/-3 | |||||
Capacity of fuel tank | L | 495 | 512 | 780 | |||||
Air outlet valves-qty x size | inches | 1*G2 | 1*G2 | 1*G2 | |||||
1*G3/4 | 1*G3/4 | 1*G3/4 | |||||||
Length with towing device(min.) | mm | 4210 | 4210 | 4710 | |||||
Length with horizontal towbar | mm | 5260 | 5260 | 6120 | |||||
Width | mm | 1800 | 2040 | 2100 | |||||
Height | mm | 2631 | 2631 | 2570 | |||||
Operational weight(full fuel tank) | kg | 4600 | 5100 | 5200 | 5750 | ||||
Engine | |||||||||
Manufacturer | CUMMINS | CUMMINS | CUMMINS | ||||||
Engine type | 6LTAA8.3-C315 | 6CTAA8.3-C260 | 6LTAA8.8-C315 | QSZ 13-C475 | |||||
Cylinders | 6 | 6 | 6 | 6 | |||||
Output at nominal speed | kW | 232 | 194 | 232 | 354 | ||||
HP | 311 | 260 | 311 | 475 |

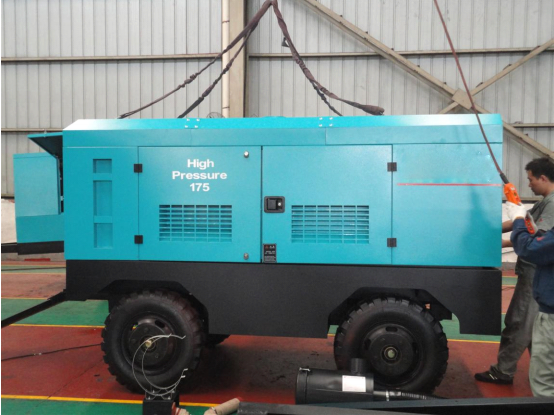

GLORYTEK 26/20 And 33/25 Diesel Engine Portable Air Compressor
Model
26/20
33/25
machine
Nominal volume flow m3/min
26(920)
33
Rated discharge pressure Mpa
2.0(20)
2.5
Unit weight kg
4500
6800
Length * width * height
4600×1950×2850
4700×2100×2500
Tire size * number
7.50-16×4
7.50-16×4
Diesel engine
manufacturer
CUMMINS
CUMMINS
model number
6LTAA8.9-C360
QSZ13-C550
type
Vertical,
straight line, water cooling
Vertical,
straight line, water cooling
Aspiration
Turbocharged
medium cooling
Turbocharged
medium cooling
Bore×trip×cylinders number
114×145×6
130×163×6
Displacement L
8.9
13
Rated speed r/min
1800
1800
Unloading speed r/min
1400
1300
Rated power HP
265(360)
550
Diesel engine oil capacity L
27.6
35
Fuel tank capacity L
400
600
Voltage of electric system v
24
24
Head model
SKY11G194
Compression series
2
2
Compressor oil capacity L
48
80
Gas supply valve
G2×1,
G2×1,
Specification * quantity
G3/4×1
G3/4×1
GLORYTEK Portable Electric Driven Air Compressor
Compressor |
LUY 100D-7 |
LUY 110D-10 |
LUY 130D-7 |
LYU 139D-10 |
LUY 165D-7 |
LUY 135D-13 |
LUY 165-10 |
LUY 203D-7 |
LUY 165D-14 |
|||||
Free air delivery | 10 | 11 | 13 | 13.9 | 16.5 | 13.5 | 16.5 | 20.3 | 16.5 | |||||
Pressure | bar(e) | 7 | 10 | 7 | 10 | 7 | 13 | 10 | 7 | 14 | ||||
Noise | dB(A) | 73+/-3 | 75+/-3 | 75+/-3 | ||||||||||
Max.Working Environment Temperature | ℃ | ≤50 | ≤50 | ≤50 | ||||||||||
Dimensions | mm | 3651*1790*1850 | 4550*1770*2292 | 5260*1800*2590 | ||||||||||
Weight | kg | 1800 | 1920 | 1920 | 3195 | 3195 | 3220 | 3220 | 3220 | 3220 | ||||
Outlet size | 1*G1 1/2 | 1*G1 1/2 | 1*G1 1/2 1*G3/4 | |||||||||||
1*G3/4 | 1*G3/4 | |||||||||||||
Tire size | 6.5-16*2 | 7.0-16*4 | 7.0-16*4 | |||||||||||
Motor | kW | 55 | 75 | 75 | 90 | 90 | 110 | 110 | 110 | 132 | ||||
Voltage | 380V/3/50HZ | 380V/3/50HZ | 380V/3/50HZ | |||||||||||
Motor case | IP54/F | IP54/F | IP54/F | |||||||||||
Compressor |
LUY 210D-10 |
LUY 230D-8.5 |
LUY 210D-14 |
LUY 250D-10 |
LUY 280D-8.5 |
LUY 238D-14 |
LUY 220D-21 |
LUY 250D-21 |
LUY 290D-21 |
|||||
Free air delivery | 21 | 23 | 21 | 25 | 28 | 23.8 | 22 | 25 | 29 | |||||
Pressure | bar(e) | 10 | 8.5 | 14 | 10 | 8.5 | 14 | 21 | 21 | 21 | ||||
Noise | dB(A) | 75+/-3 | 78+/-3 | |||||||||||
Max.Working Environment Temperature | ℃ | ≤50 | ≤50 | |||||||||||
Dimensions | mm | 5260*1800*2590 | 5260*2040*2630 | |||||||||||
Weight | kg | 4360 | 4360 | 4500 | 4500 | 4500 | 4600 | 4700 | 4850 | 4900 | ||||
Outlet size | 1*G1 1/2 1*G3/4 | 1*G1 1/2 1*G3/4 | ||||||||||||
Tire size | 6.5-16*2 | 7.0-16*4 | 7.0-16*4 | |||||||||||
Motor | kW | 132 | 132 | 160 | 160 | 160 | 180 | 200 | 220 | 250 | ||||
Voltage | 380V/3/50HZ | 380V/3/50HZ | ||||||||||||
Motor case | IP54/F | IP54/F |
