Integrated Rig with Tower Type Core Drill Rigs
Description:

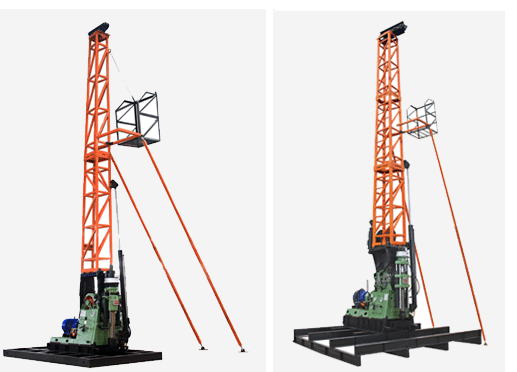

XY-2T/4T/42T/44T drill rigs are combined with the main machines of XY-2/4/42A and towers. This series of drill rigs are compact in structure, reasonable in composition, light weight, easy in disassembling, rationale in rotary scope. Convenient in operation and maintenance. The drill rigs have the function of hydraulic raising and lowering, which is suitable in large angle slanting hole drilling.
Technical Specification
Specifications
Models
XY-2T
XY-4T
XY-42T
XY-44T
XY-5T
Drilling depth
300-500m
700-1000m
700-1100m
700-1400m
900-1800m
Max.torque
3147N·m
2640N·m
3200N·m
3200N·m
5500N·m
Spindle stroke
560mm
600mm
600mm
600mm
600mm
I.D of spindle
96mm
68mm
93mm
93mm
93mm
Max. Lifting capacity of spindle
60kN
80kN
80kN
120kN
135kN
Max. Feeding force
45kN
60kN
60kN
90kN
100kN
Max.hoisting force
30kN
30kN
30kN
45kN
60kN
electric motor power
22kW
30kW
30kW
37kW
55kW
Diesel Engine power
31kW
42kW
42kW
50kW
64kW
| Specification of mast | Models | ||
| XY-2T | XY-4T/42T/44T | XY-5T | |
| Drill-tower height | 8000mm | 10000mm | 11000mm |
| The area of the base | 3600×2100mm | 4000×4000mm | 5500×5500mm |
| The number of Pulley | 2 | 5 | 5 |
| Max.Load of Mast | 75kN | 100kN | 120kN |
| Load of Moveable Work Plateform | 70Kg | 80Kg | 90Kg |
| Adjusted angles of drill tower | 45°- 90° | 45°- 90° | 45°- 90° |
