AIRMAN---Diesel driven air compressor

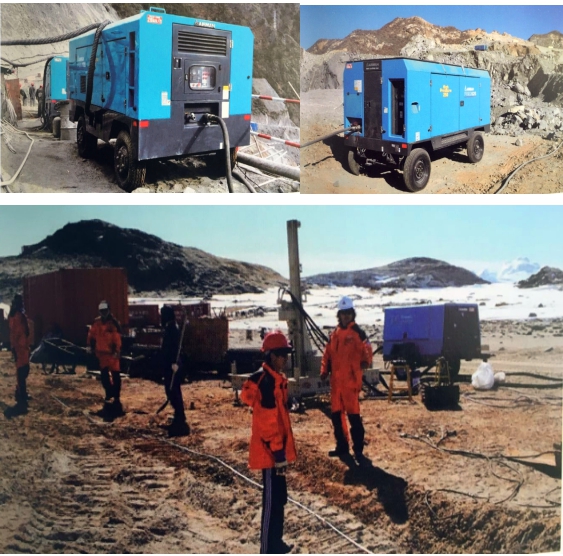

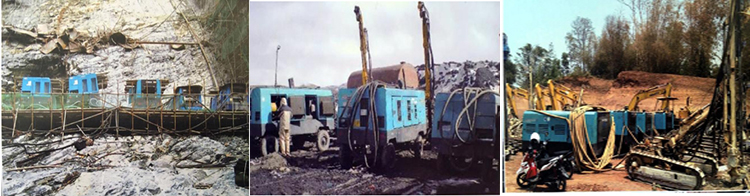

▲Low failure rate, low fuel consumption, low noise, low emission engine driven mobile PDS series air compressor, in the mine, power station, water wells, railways, foundation engineering, and many other field construction site has been widely used.
▲Air amount 1.5~34m³/ min, pressure 7~31kgf/c ㎡, from small to large pressure of various models for different customers in different industries have plenty of options.
▲The AIRMAN air compressor has excellent low-temperature starting performance, which is the best choice for the cold area and winter operation.
| model | PDSX750S | PDSJ900S | PDSK900S | PDSJ1050S | PDSK1050S | PDSK1200S | ||
| compressor | Working type | Double spiral oil cooling | ||||||
| Air delivery volume | m³/ min | 21.2 | 25.5 | 25.5 | 29.7 | 29.7 | 34 | |
| Air delivery pressure | kgf/c ㎡ | 30.6 | 10.6 | 25 | 21.1 | 25 | 25 | |
| Lubricating oil capacity | L | 110 | 110 | 190 | ||||
| Interface size*number | 2"*1,3/4"*1 | 2"*1 | 3/4"*1,3"*1 | |||||
| Diesel engine | Manufacturer ＆model | Xiao Song SAA6D125E | Carter C13 | Carter C15 | ||||
| Rated speed | r/min | 1900 | 1800 | 1900 | 1800 | |||
| Rated power | kw[PS] | 262.5[357] | 328[446] | 262.5[357] | 403[548] | |||
| Lubricating oil capacity | L | 41 | 40 | 47 | ||||
| Coolant capacity | L | 57 | 53 | 65 | 57 | 65 | ||
| Fuel tank capacity | L | 600 | 730 | 600 | 845 | |||
| machine | Noise value | dB(A) | 73 | 75 | 73 | 75 | ||
| Wheel size * number | 7.5-16 14PR*4 | 7.5-16 14PR*4 | 8.25-16 14PR*4 | |||||
| Size(mm) | overall length | 4350 | 5270 | 4350 | 4370 | 5600 | ||
| Full width | 2000 | 2150 | 2000 | 2000 | 2110 | |||
| Full height | 2460 | 2600 | 2460 | 2290 | 2750 | |||
| total weight | kg | 5900 | 7350 | 5500 | 5900 | 8800 | ||
| model | PDS420S | PDSF315S | PDSH630/G715S | PDSH830S | PDSG900S | |||
| compressor | Working type | Sigal spiral oil cooling | ||||||
| Air delivery volume | m3/min | 11.9 | 8.9 | 17.8/20.2 | 23.5 | 25.5 | ||
| Air delivery pressure | kgf/c ㎡ | 7.1 | 10.6 | 17.3/14.3 | 17.3 | 14.3 | ||
| Lubricating oil capacity | L | 40 | 63 | 100 | ||||
| Interface size*number | 2"*1,3/4"*2 | 3/4"*2,2"*1 | 3/4"*1,2"*1 | |||||
| Diesel engine | Manufacturer ＆model | KubotaV3800 | Isuzu 6HK1X | Xiao Song SAA6D125E | ||||
| Rated speed | r/min | 2600 | 2000/2200 | 1900 | ||||
| Rated power | kw[PS] | 77.7[106] | 212[288] | 262.5[357] | ||||
| Lubricating oil capacity | L | 13 | 41 | 47 | ||||
| Coolant capacity | L | 15.6 | 36 | 65 | 57 | |||
| Fuel tank capacity | L | 169 | 269 | 600 | ||||
| machine | Noise value | dB(A) | 71 | 73 | 73 | |||
| Wheel size * number | 185R15*2 | 8.25-16 14PR*2 | 8.25-16 14PR*4 | |||||
| Size(mm) | overall length | 3605 | 4755 | 4350 | 4370 | |||
| Full width | 1975 | 2185 | 2000 | 2000 | ||||
| Full height | 1755 | 2150 | 2460 | 2290 | ||||
| total weight | kg | 1980 | 3565 | 5500 | 5900 | |||
AIRMAN---Electric driven air compressor
▲Suitable for construction site with power supply, easy to move, stable performance.
▲Mute type box body structure not only makes the workers will be exempted from the noise of the machine damage, also with the rain and snow prevention function, all-weather outdoor type electric displacement type air compressor.
▲No exhaust emissions, in the tunnel, subway and other poor ventilation conditions are widely used in the works.
| model | PES355 | PES460 | PES530 | PESG425 | PES600 | PES720 | PES920 | |||||||
| compressor | Working type | Sigal spiral oil cooling | ||||||||||||
| Air delivery volume | m³/ min | 10 | 13 | 12.2 | 9.8 | 15 | 12 | 17 | 15 | 14 | 20 | 25 | 20 | |
| Air delivery pressure | kgf/c ㎡ | 8 | 7 | 8 | 12 | 7 | 10 | 12 | 8.5 | 8 | 12 | |||
| Lubricating oil capacity | L | 45 | 58 | 70 | ||||||||||
| electricmachinery | Rated speed | r/min | 2980 | 1480 | 2980 | 1480 | ||||||||
| Rated power | kw[PS] | 55 | 75 | 90 | 110 | 132 | 160 | |||||||
| machine | Noise value | dB(A) | 78 | 80 | 85 | |||||||||
| Wheel size * number | 3/4"*2,1 1/4"*1 | 3/4"*1,1 1/4"*1,2"*1 | 1 1/4"*2,1/2"*1 | |||||||||||
| Size(mm) | overall length | 3600 | 3515 | 4200 | 3600 | |||||||||
| Full width | 1956 | 1970 | 1900 | 1900 | ||||||||||
| Full height | 1720 | 1747 | 1700 | 1950 | ||||||||||
| total weight | kg | 1880 | 2300 | 3140 | 3360 | 4500 | ||||||||
| model | PES1060 | PESG825 | PESG760 | PESH620 | PESJ830 | PESJ1000 | PESK900 | BES500 | BES760 | |||
| compressor | Working type | Sigal spiral oil cooling | double spira | Sigal spiral oil cooling | ||||||||
| l oil cooling | ||||||||||||
| Air delivery volume | m³/ min | 28 | 26 | 23.3 | 21.7 | 17.5 | 23.5 | 28.3 | 25.5 | 14 | 21.7 | |
| Air delivery pressure | kgf/c ㎡ | 8 | 10 | 12 | 14 | 17.3 | 21 | 21 | 25 | 12 | 14 | |
| Lubricating oil capacity | L | 80 | 105 | 65 | 100 | 50 | 80 | |||||
| electric | Rated speed | r/min | 1480 | 2980 | 1480 | 2980 | 2970 | 1480 | ||||
| machinery | Rated power | kw[PS] | 55 | 200 | 160 | 220 | 250 | 110 | 200 | |||
| machine | Noise value | dB(A) | 200 | 72 | 85 | 82 | ||||||
| Wheel size * number | 1 1/4"*2, | 3/4"*1,2"*1 | 1"*2,2"*1 | 3/4"*1,2"*1 | 1"*1,1/2"*1 | |||||||
| 2 1/2"*1 | ||||||||||||
| Size(mm) | overall length | 3600 | 3750 | 3750 | 4000 | 2800 | 3000 | |||||
| Full width | 1900 | 1850 | 1790 | 1870 | 1430 | 1800 | ||||||
| Full height | 1950 | 2210 | 2000 | 2300 | 1380 | 1600 | ||||||
| total weight | kg | 4660 | 4046 | 3825 | 5700 | 6000 | 3000 | 4200 | ||||
