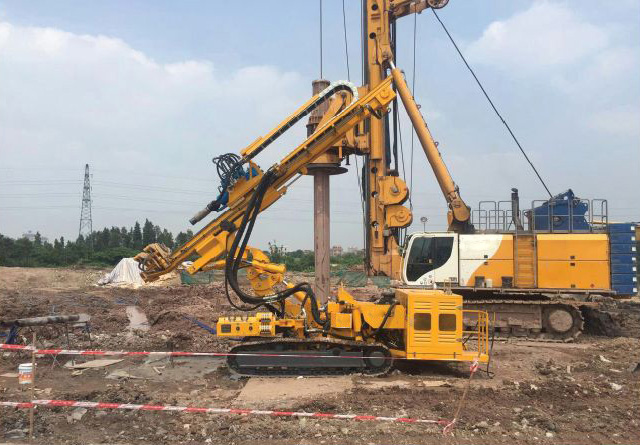

D-215 Anchor Drilling Rig

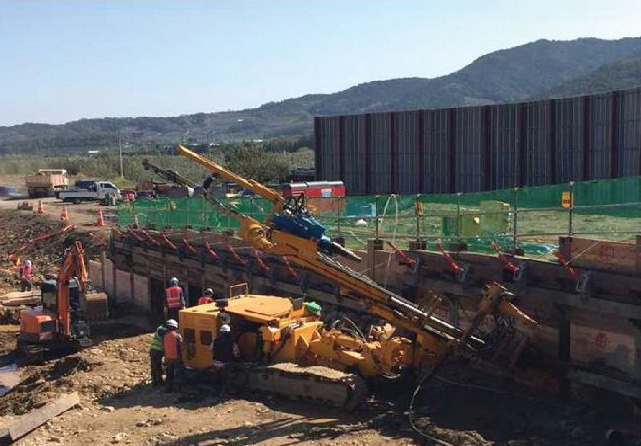

The D-215 multifunctional hydraulic anchor drill rig finds it's usage at anchor & minipile engineering field for construction deep pit, subway, tunnel, railway, highway and disaster relief project. Powered by highly efficient turbocharge diesel engine of Cummins, the drill rig is economical utility with easy maintenance. Robust & compact top head with large torque and strong percussion, which developed by Bealong independently, is suitable to use in diverse geological stratum. Crawler with large tractive force, which manufactured by Bealong, gives smooth and reliable ride to drill rig at diverse road conditions.
The efficiency of the hydraulic system of the drill rig improves dramatically through applying load sensing technology. The drill mast with large swing & tilt angles makes the drill rig more suitable for operating efficiently at various working conditions. Swingably & integrated operation panel of the drill rig gives drillers easier and more flexible operation.
| Power type | Diesel power | |
| Max. power output （KW） | CUMMINS QSC8.3-C215 160 | |
| Mode of operation | Rotary/Percussive | |
| Electric system (V) | 24 | |
| Fuel tank capacity (L) | 380 | |
| 1st circuit operating pressure（Mpa） | 0-24 | |
| 2nd circuit operating pressure（Mpa） | 0-20 | |
| 3th circuit operating pressure（Mpa） | 0-25 | |
| Hydr. oil tank capacity (L) | 500 | |
| Feed stroke （mm） | 4000 | |
| Feed force （KN） | 100 | |
| Retraction force （KN） | 100 | |
| Feed rate (m/min) | Low | 0-15 |
| High | 0-50 | |
| Retraction rate (m/min) | Low | 0-15 |
| High | 0-50 | |
| Percussion Frequency (Times/min) | 0-1150 | |
| Max.torque (N·m) | 8750 (At high speed) | |
| 15800 (At low speed) | ||
| rotating (r/min) | 0-120 (High speed) | |
| 0-60 (Low speed) | ||
| Transport dimensions(L*W*H)（mm） | 7800*2280*2700 | |
| Weight （Kg） | 13400 | |
