Auger Drill Rig

Tractor Mounted Auger Drill Rig

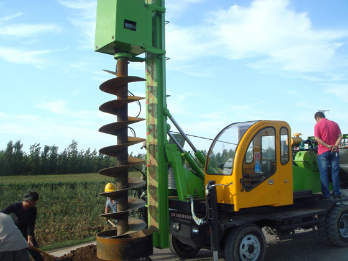

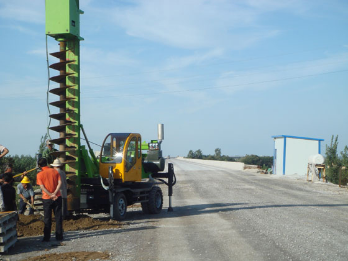

L360-6M,L360-8M,L360-10M Tractor Mounted Auger Drill Rig

Main Parameters of drill rig
Model	L360-6M	L360-8M	L360-10M
Drilling Diameter	100-800mm	100-800mm	100-800mm
Drilling Depth	6-11M	8-15M	8-15M
Drilling Speed	40-65r/min.	40-65r/min.	40-65r/min.
Rotary angle	360 Degree	360 Degree	360 Degree
Oil Pump Pressure	16-20mpa	16-20mpa	16-20mpa
Oil Pump Flow	32L/Min.	32L/Min.	32L/Min.
Diesel Engine	34KW/2200r/min	36KW/2200r/min	36KW/2200r/min
Generator Unit	40-50KW	40-50KW	40-50KW
Gradeability	25 Degree	25 Degree	25 Degree
Travelling Speed	40km/h	40km/h	40km/h
Travelling Type	Diesel engine or power	Diesel engine or power	Diesel engine or power
Power source	External power supply or Generator operation	External power supply or Generator operation	External power supply or Generator operation
Min. Ground Clearance	230mm	230mm	230mm
Axile Base	2650mm	2550mm	2550mm
Wheel Base	Front 1860, Rear 1920mm	Front 1860, Rear 1920mm	Front 1860, Rear 1920mm
Transportation dimensions	730021002850mm	950021003050mm	1150021003050mm
Weight	6500kg	7300kg	8400kg
