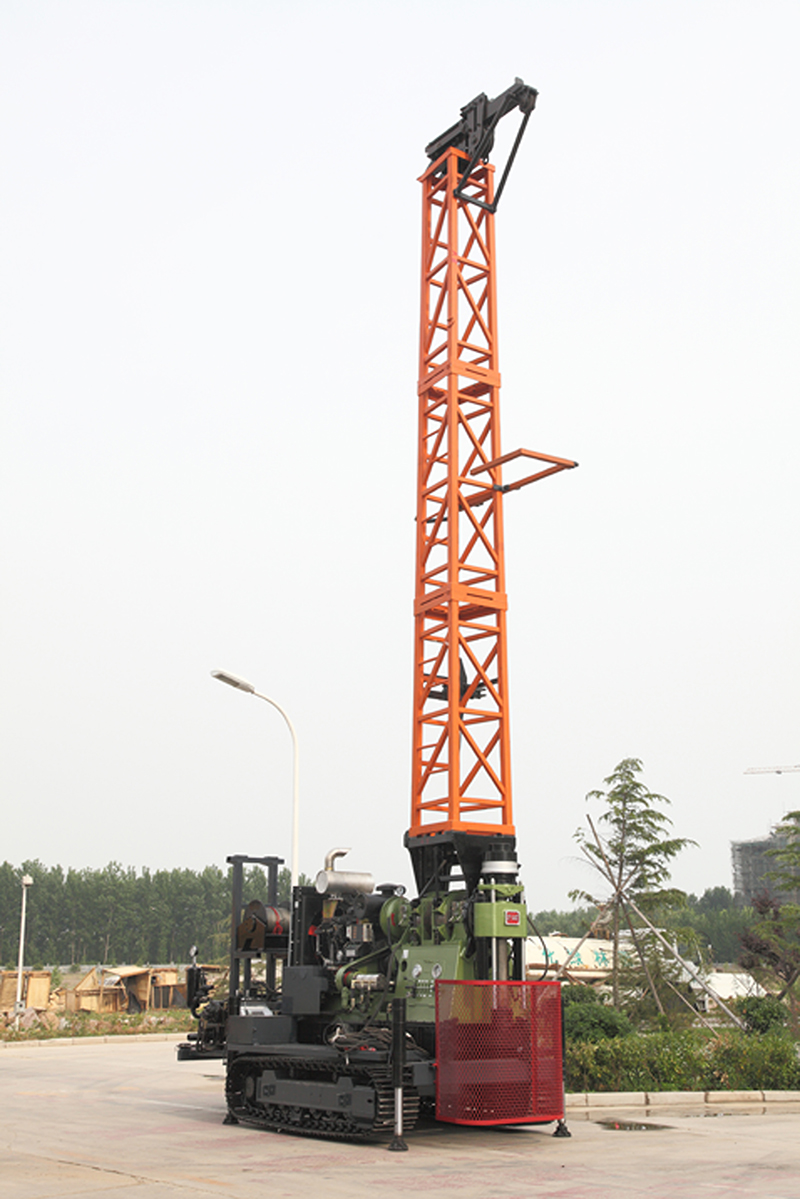

Crawler Type Core Drill Rigs
(XY-4TL/XY-42TL/XY-44TL/XY-5TL/XY-6TL/XY-6BTL)
The models of XY-4TL/XY-42TL/XY-44TL/XY-5TL/XY-6TL/XY-6BTL crawler- type drill rigs are new types of rigs, which are developed on the basis of our decades of experience of manufacturing rigs to meet the needs of multiple drill techniques, mainly diamond bits drill. They can also be used in the fields of engineering geological and hydro-geological exploration, water well and large-diameter piling works. Being simple in structure, reliable for operation and convenient for maintenance, they are also featured by:
1. It is the product of the perfect integration of full-hydraulic system with traditional mechanical drill technology.
2. Equipped with auxiliary hydraulic hoist and hydraulic mud pump, it is convenient for installation. With its compact structure, it is also convenient for operation.
3. Installed with hydraulic lifting drill tower, it is flexibility in operation.
4. With 4 hydraulic outriggers, it is stable in operation.
5. Equipped with crawler, the rig offers flexibility and ease mobility between work-sites.
Technical Specification
| Model | XY-4TL | XY-42TL | XY-44TL | XY-5TL | XY-6TL | XY-6BTL | |
| Drilling Depth | 700-1000m | 700-1100m | 700-1400m | 900-1800m | 1000-2100m | 1200-2400m | |
| Drill Angle | 45-90° | 45-90° | 45-90° | 90° | 90° | 90° | |
| Spindle Speed | Positive | 101,187,267, 388,311,574, 819,1191rpm |
82,151,215, 313,251,463, 661,961rpm |
83,152,217, 316,254,468, 667,970rpm |
96,170,244, 284,357,471, 678,994rmp |
92,162,244, 284,357,471, 678,994rpm |
96,178,253, 369,268,494, 705,1025rpm |
| Negative | 83,251rpm | 67,205rpm | 67,206rpm | 84,293rpm | 85,234rpm | 78,248rpm | |
| Max. Spindle Speed | 2640N.m | 3200N.m | 3200N.m | 5500N.m | 7800N.m | 7800N.m | |
| Spindle Feeding Stroke | 600mm | 600mm | 600mm | 600mm | 720mm | 720mm | |
| Spindle Hold Diameter | 68mm | 93mm | 93mm | 93mm | 93mm | 118mm | |
| Max.Lifting Capacity | 80kN | 80kN | 120kN | 135kN | 200kN | 200kN | |
| of Spindle | |||||||
| Max. Pressuring Force | 60kN | 60kN | 90kN | 100kN | 150kN | 150kN | |
| of Spindle | |||||||
| Steel Wire Diameter | 16mm | 16mm | 17,5mm | 18,5mm | 21,5mm | 21,5mm | |
| Winding Drum | 90m | 90m | 110m | 120m | 120m | 120m | |
| Capacity | |||||||
| Max.Hoisting Force | 30kN | 30kN | 45kN | 60kN | 85kN | 85kN | |
| Drill-tower Height | 10m | 10m | 10m | 12m | 12m | 12m | |
| Power Unit(diesel engine) | 74KW/2200r/min | 82KW/2200r/min | 97KW/2200r/min | 132KW/2200r/min | 132KW/2200r/min | 132KW/2200r/min | |
| Mud Pump | 160L/min | 160L/min | 250L/min | 250L/min | 320L/min | 320L/min | |
| Mixer(optional) | Y2-16-0 | Y2-16-0 | Y2-16-0 | Y2-16-0 | Y2-16-0 | Y2-16-0 | |
| Auxiliary hoister | 12kN | 12kN | 12kN | 12kN | 15kN | 15kN | |
| Max.Load of Mast | 100kN | 100kN | 100kN | 200kN | 200kN | 200kN | |
| Moving Speed | 1,5km/h | 1,5km/h | 1,5km/h | 1,5km/h | 1,5km/h | 1,5km/h | |
| Climbing Capacity | 30° | 30° | 30° | 30° | 30° | 30° | |
| Dimensions | 4785*2220* | 4785*2220* | 4785*2220* | 6186*2220* | 6186*2220* | 6186*2220* | |
| 10524mm | 10524mm | 10524mm | 12000mm | 12000mm | 12000mm | ||
| Weight | 9,3t | 9,6t | 10t | 13,5t | 14t | 14,6t | |
