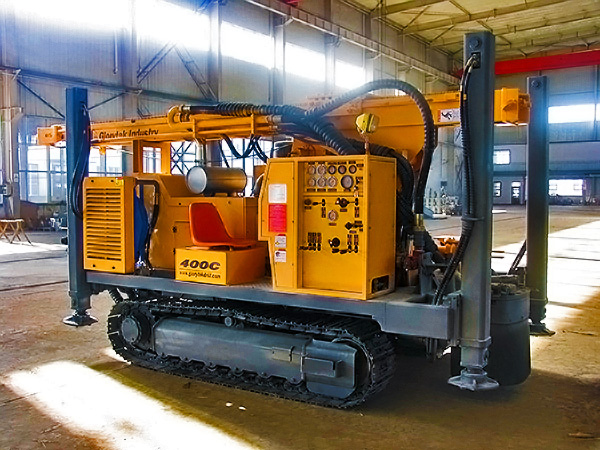

400C Full-Hydraulic Crawler Water Well Drill Rig

400C Full-Hydraulic Crawler Water Well Drill Rig

1‐Technical Parameter

Model： 400C

Max. drill depth：250m

Drill diameter：110-325mm

Diesel Engine: 93KW (Cummins)

Working air pressure：1.05-2.46MPa

Air consumption：16-34 m³/min

Drill rod length：3m

Drill rod diameter：89mm/76mm

Axial pressure： 5t

Lifting force：12t

Slow lifting speed：4m/min

Fast lifting speed：14.5m/min

Slow feed speed：6.2m/min

Fast feed speed：25m/min

Rotation torque：5700-6600Nm, 2820-3300Nm

Rotation speed：0-90r/min, 0-180r/min

Drilling Method: Downhole hammer or Mud Drilling

Travel speed：3.5Km/h

Grade ability：21°

Weight：7.8 t

Whole dimension：6×2.1×2.8m

Application formation：Unconsolidated layer or bedding rock

Drill method： Down the hole or mud pump drilling

Hammer：Medium or high air pressure series

2‐ Structure Features：

1- Diesel engine-driving hydraulic system. Travel, rotate, feed, hoist, land, lift, unload, and so on all are run by Hydraulic components.

2-Working unit consists of feed system, slide guide(mast),top-driving rotary head, slide plate,centering apparatus, unloading system, hoisting system, etc.

3-Axial pressure, feed speed and rotation speed are adjustable.

4-Crawler self-driven structure travel mode, easy to move. Use crawler chassis. Steel track link(Inlaying rubber block is in option which is easy to travel on city streets)

5- During operation, four hydraulic landing legs will adjust the rig body level and stability

6- Four extra high landing legs are available, during long-distance transportation loaded with vehicle,it can be moved onto the vehicle directly and easy for transportation, no need to be loading or lifting.

7-Auxiliary hoist can list items within 1 ton (such as drilling tools, tools, etc), and also help to load or unload drill rod and drill tools.

8-The slide guide can be fixed with the body during operation in order to improve the operating stability of the mast.

9-Level instrument and dedicated centering apparatus ensure the perpendicularity and accuracy of the drilling hole.

10- Compressed-air system provides special oil mist lubricator to lubricate the impactor and longer the serving life of it.
