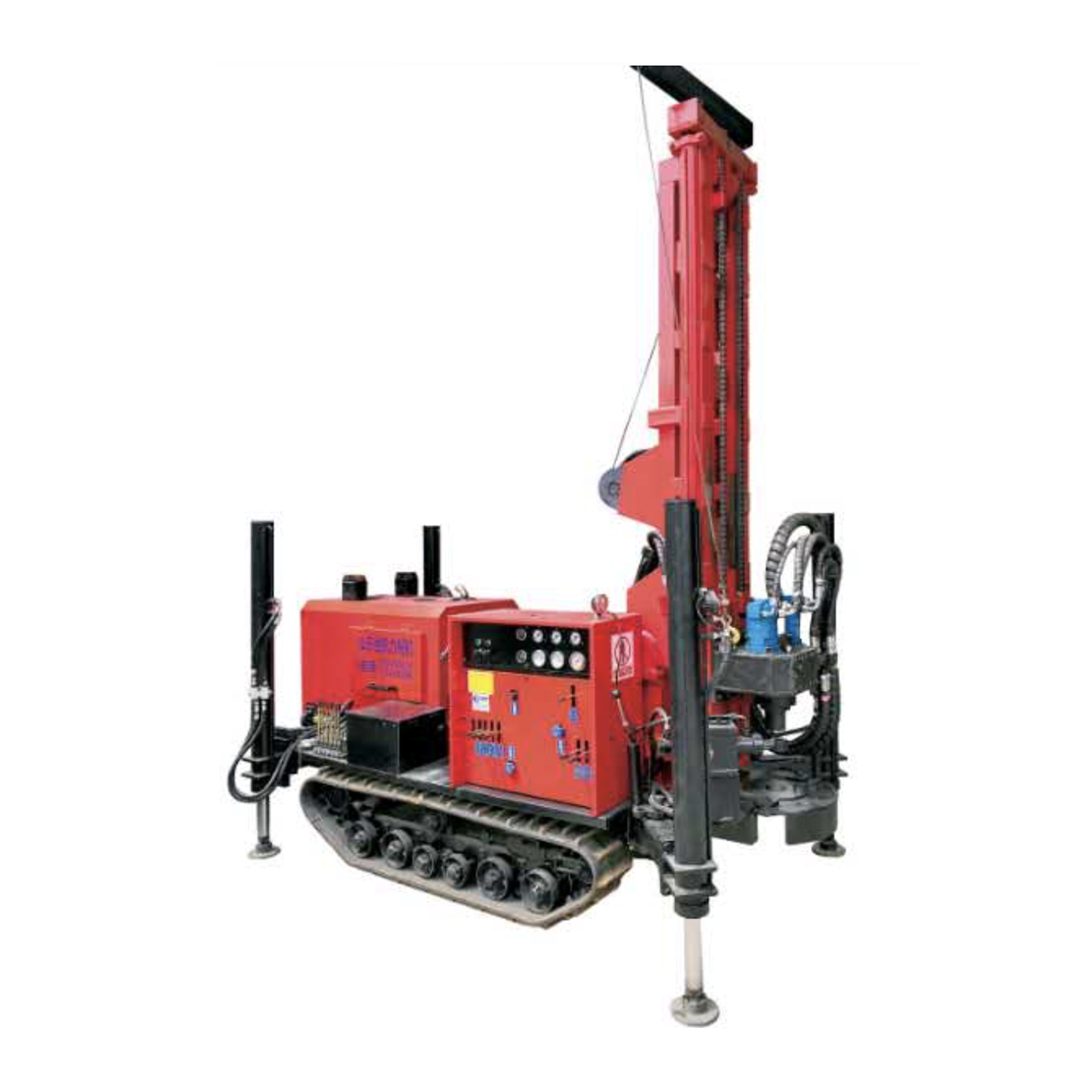

GL200R Rubber Crawler Water Well Drill Rig
|
Item |
Specification |
|
Weight of the rig(T) |
5 |
|
Drilling diameter(mm) |
138-219 |
|
Drilling depth (m) |
200 |
|
Feeding stroke(m) |
3.5 |
|
Moving speed(km/h) |
2.5 |
|
Climbing ability(°) |
30 |
|
Diesel engine(kw) |
65 |
|
Air pressure (mpa) |
1.8-2.5 |
|
Air consumption(m³/min) |
18-30 |
|
Rod diameter(mm) |
Φ76 φ89 |
|
Rod length (m) |
1.5 3.0 |
|
Lifting force (T) |
13 |
|
Rotary speed (r/min) |
35-70 |
|
Rotary torque(N.m) |
5500 |
|
Supporting legs (height*width)（mm） |
1200*2400 |
|
Rig dimensions(length*width*height)(mm) |
3500*1600*2200 |
