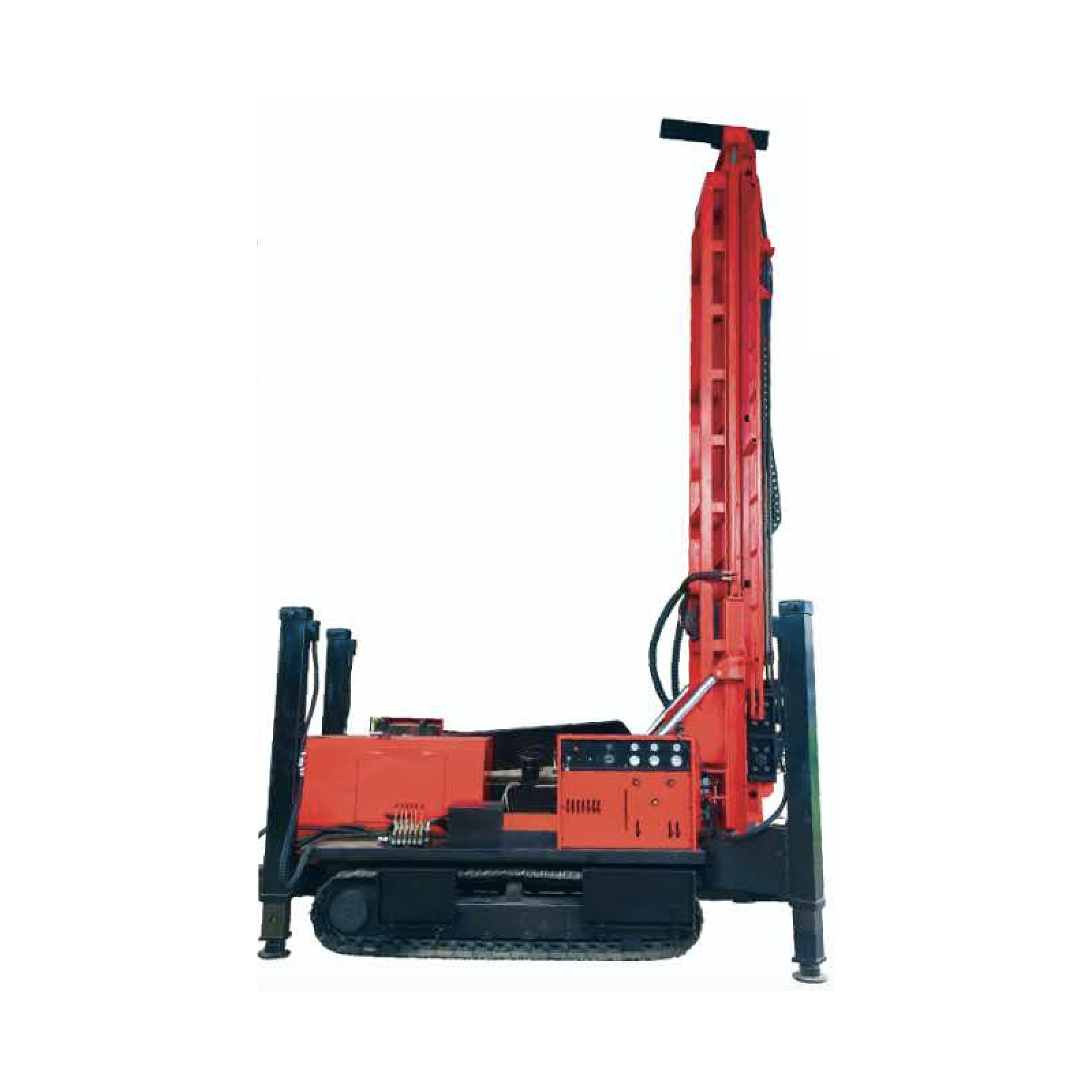

GL600S Crawler Water Well Drill Rig
|
Item |
Specification |
|
Weight of the rig(T) |
12 |
|
Drilling diameter(mm) |
138-350 |
|
Drilling depth (m) |
600 |
|
Feeding stroke(m) |
6.6 |
|
Moving speed(km/h) |
2.5 |
|
Climbing ability(°) |
30 |
|
Diesel engine(kw) |
135 |
|
Air pressure (mpa) |
2.1-3.5 |
|
Air consumption(m³/min) |
40 |
|
Rod diameter(mm) |
Φ108 φ114 |
|
Rod length (m) |
3.0 6.0 |
|
Lifting force (T) |
29 |
|
Rotary speed (r/min) |
45-115 |
|
Rotary torque(N.m) |
8500-11000 |
|
Supporting legs (height*width)（mm） |
1400*2800 |
|
Rig dimensions(length*width*height)(mm) |
6200*2100*2650 |
