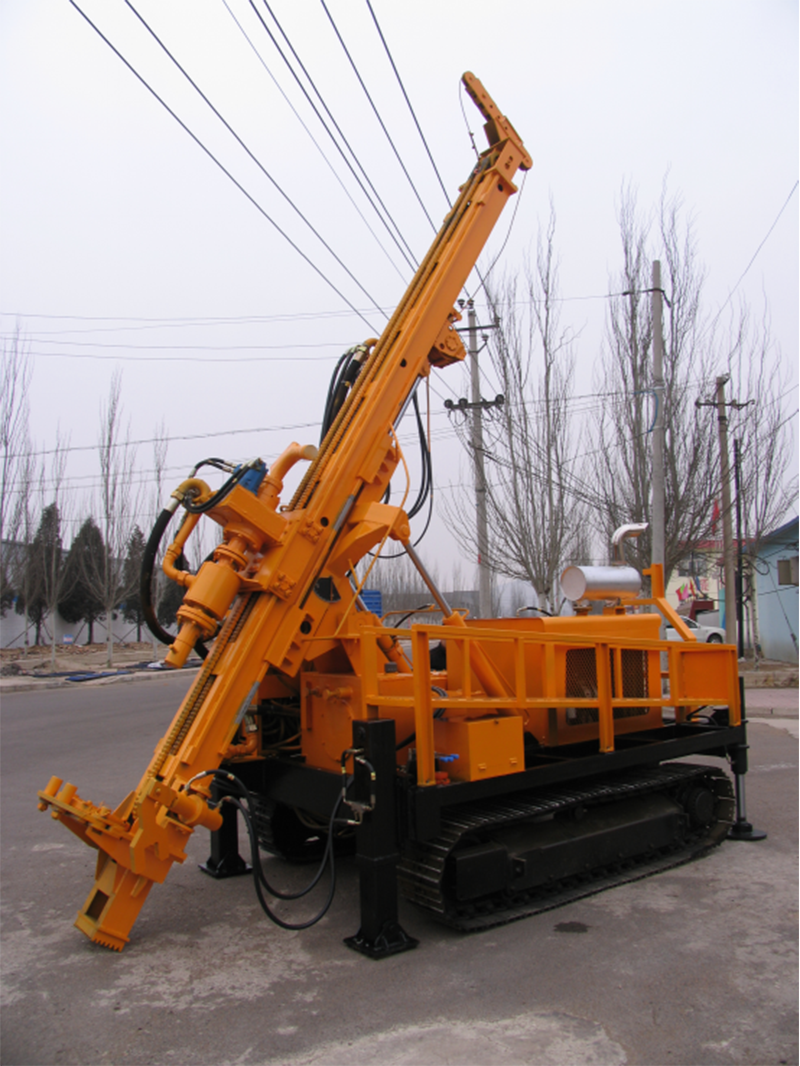

GLF500 Full Hydraulic RC Drill Rig
1. Technical Parameter
Model：
GLF500
Max. drill depth：
280m
Drill diameter：
110～305mm
Working air pressure：
1.05～3 MPa
Air consumption：
16-42 m³/min
Drill rod length：
3m
Drill rod diameter：
Φ89/Φ108/Φ127mm
Axial pressure：
5t
Lifting force：
12t
Slow lifting speed：
2.9m/min
Slow feed speed：
4.2m/min
Fast lifting speed：
14.5m/min
Fast feed speed：
21m/min
Rotation torque：
4000-5700Nm; 2820-3300Nm
Rotation speed：
0-120r/min；0-150r/min
Penetration rate：
10-25m/h
Walking speed:
2.5Km/h
Grade ability：
21°
Weight：
8.5t
Whole dimension：
6.3×2.1×2.8 m
Application formation：
Unconsolidated layer or bedding rock
Drill method：
reverse hammer
Hammer：
Intermediate of high air pressure series
2. Structures features
1. Diesel engine-driving hydraulic system. Walk, Travel, rotate, feed, hoist, land, lift, compensate, unload and so on are all run by hydraulic components.
2. During rock drilling operation, you can use reverse hammer that air compressor will provide wind to drive and slag.
3. In operation, you can use reverse hammer and double ply drill rod (intake air through the gap of the double ply, and slag through the inner tube) to make reverse circulation operation.
4. You can also use common drill rod to make positive circulation operation.
5. Working unit consists of feed system, slide guide (mast), top-driving rotary head, Intake box, slide plate, compensation mechanism, centering apparatus, unloading system and hoisting system, etc.
6. Axial compression, forward speed and rotation speed is adjustable.
7. Crawler self-driven structure travel mode, easy to move. Use crawler chassis. Steel track link(Inlaying rubber block is in option which is easy to travel on city streets).With four high landing legs as standard configuration. During long-distance transportation loaded with vehicle, it can be moved onto the vehicle directly and easy for transportation, no need to lift.
8. During operation, four hydraulic landing legs will adjust the rig body level and stability
9. Hoisting can lift for items (such as drill, tools, etc.) within 1.0 tons, can also be assisted in unloading drill pipe and drill rigs.
10. The slide guide (mast) can work in the range of 90 ° to 45 °. The mast belt with a compensation mechanism , can make the mast move to the working table to keep the stability, and improve the working accuracy.
11. Level instrument and dedicated centering apparatus ensure the perpendicularity and accuracy of the drilling hole.
12. Compressed-air system provides special oil mist lubricator to lubricate the hammer and longer the serving life of it.
3. Main configuration modes and manufacturer
1. crawler chassis, steel track plates (available separately insert rubber blocks).
2. Built-walking gear.
3. plunger-type hydraulic motor running.
4. low speed and high torque rotary double cycloid hydraulic motor (Eaton) drives a gear.
5. multi-gear pump is America's most authoritative hydraulic gear pump manufacturer Permco company's products.
6. the standard diesel engine of Dongfeng Cummins 100Kw six-cylinder engine, a multi-stage filter.
