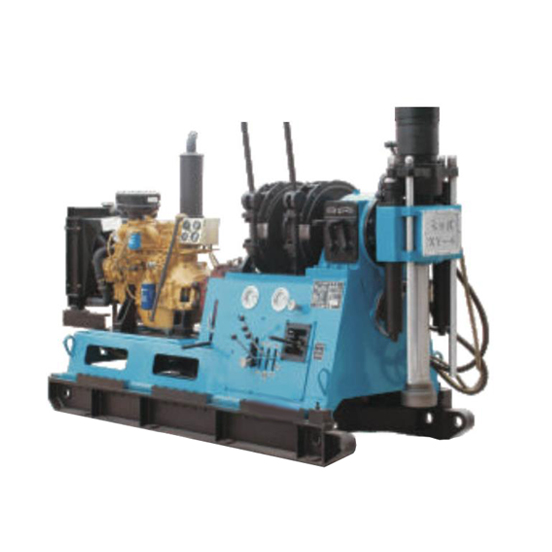

XY-4 Core Drilling Rig
Description:
XY-4 is a shallow/middle-hole core drill rig. It can be used to not only the drilling of carbide bit for engineering geological
exploration and hydrological shallow-layer fluid and natural gas exploration, but also the drilling of small-diameter diamond bit for the exploration of metal, nonmetal and solid mineral deposits. It has been widely applied to the drilling operation of energy survey, highway/railway construction, hydropower engineering, civil engineering, etc.
Features:
1. The drill rig is characterized by higher rotation speeds and rational speed range, a bigger range for speed grade and bigger low-speed torque. It is applicable to the small-diameter core drilling with diamond bits, and it can also meet the requirements of the big-diameter core drilling with hard alloy bits and various engineering hole drilling;
2. It adopts vehicle transmission case and clutch, with simple structure and rational layout. All parts are exposed, without
overlapping, easy to maintenance, serving and repair.
3. It has two-gear reverse speeds for dealing with the accident in the hole, with lower labor strength and safe operation;
4. Its hydraulic gear pump adopts the vehicle-specific oil pump, which is directly suspended on the transmission case, with compact structure and easy for disassembly and repair;
5. The drill rig is light in weight, easy to be disassembled and moved and available to the operation in mountainous area;
6. It is equipped with sufficient instruments, which is in favor of mastering the situation in hole, with a few operating handles, and characterized by rational layout and flexible and reliable operation;
7. The machine can moved steadily and fixed firmly. Its frame is solid, with a lower gravity center and good stability during the
high-speed drilling;
8. The hydraulic plunger chuck is adopted, with reliable clamping operation and free from damaging the drive pipe;
Technical Specification:
| DCDMA Drilling rod | Drilling rod of wires to core | BQ Drilling rod | 800m |
| NQ Drilling rod | 600m | ||
| HQ Drilling rod | 450m | ||
| PQ Drilling rod | 250m |
| Inclination range of vertical shaft | 0°~ 360 | |||
| Power Resource | Model | Power | Revolution | Weight（without Chassis） |
| Electric motor | Y225S-4 | 37KW | 1480 r/min | 300kg |
| Diesel engine | YCD4K11T-50 | 37KW | 2200 r/min | 300kg |
| Swivel Head Type | Double-cylinder feeding and mechanical gyre | |||
| Spindle diameter | φ80mm | |||
| Spindle speed | Forward(r/min)48 87 150 230 327 155 280 485 745 1055 | |||
| Reverse(r/min)52 170 | ||||
| Max. torque | 5757N·m | Feeding travel of vertical shaft | 600mm | |
| Max. uplifting force of vertical shaft | 80KN | Max. feeding force of vertical shaft | 60KN | |
| Clutch Type | A typical 130-type vehicle-specific dry single-disc friction clutch | |||
| Hoist Type | Planetary gear transmission system | |||
| Diameter of wire rope | φ15.5mm | |||
| Drum capacity | 89m(seven layers) | |||
| Max. hoisting force (Single rope) | 48KN | |||
| Hoisting velocity | Hoisting velocity (third layer) 0.46 0.83 2.21 3.15 | |||
| Hydraulic System Normal pressure | 8Mpa | Max.Pressure | 10Mpa | |
| Oil pump | With Diesel engine | With electric motor | ||
| Type:With Diesel engine | CB-E25 | CB-E40 | ||
| Nominal displacement | 25mL/r | 40mL/r | ||
| Nominal speed | 2000r/min | 2000r/min | ||
| Rated pressure | 16Mpa | 16Mpa | ||
| Most press | 20Mpa | 20Mpa | ||
| Frame Type | 1: Skid type(with sliding base) | |||
| 2:Trailer Mounted Type | ||||
| 3:Crawler Mounted Type | ||||
| Movable travel of drill | 460mm | Distance between drill and hole-opening | 280mm | |
