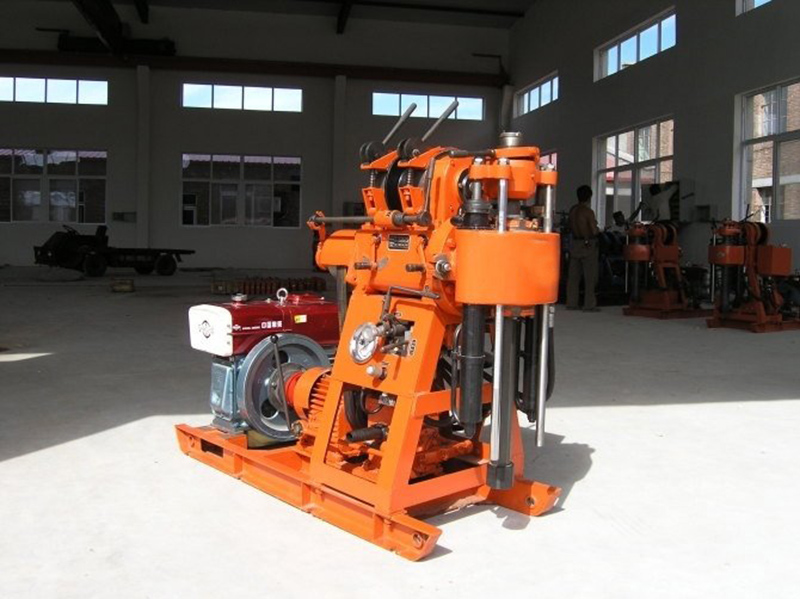

XY-1 Core Drill Rig
Applications:
1. With hydraulic automatic feeding device, elevated drilling efficiency.
2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
3. Centralized handles, easy operation, safe and reliable.
4. The drilling machine, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.
5. lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
| Technical Specifications | |
| Drill | |
| Drilling depth | 100m |
| Drill rod dia | 42mm |
| Initial hole dia | 110mm |
| Final hole dia | 75mm |
| Angle range | 90°-75° |
| Dimensions(L×W×H) | 1640×1030×1440 (mm) |
| Weight(without power unit) | 500kg |
| Swivel Head | |
| Spindle speed(3-speed) | 142/285/570 r/min |
| Spindle stroke | 450mm |
| upward displacement speed of idling vertical spindle | 0.05m/s |
| Downward displacement speed of idling vertical spindle | 0.067m/s |
| Spindle pull-down max | 15KN |
| Spindle lifting capacity max | 25KN |
| Hoist | |
| Max .lifting capacity(1-speed,single rope) | 10KN |
| Cable volume (number) of hoisting drum | 27m |
| Wire rope dia | 9.3mm |
| Mud Pump | |
| Model | Horizontal reciprocating single-acting piston pump |
| Displacement max | |
| Equipped with diesel engine | 95L/min |
| Equipped with moto | 77L/mm |
| Allowable working pressure max | 1.2Mpa |
| Continuous working pressure | 0.7Mpa |
| Suction pipe dia | 32mm |
| Discharge pipe dia | 25mm |
We can also mount a trailer chassis or crawler chassis on the rig as following pictures:

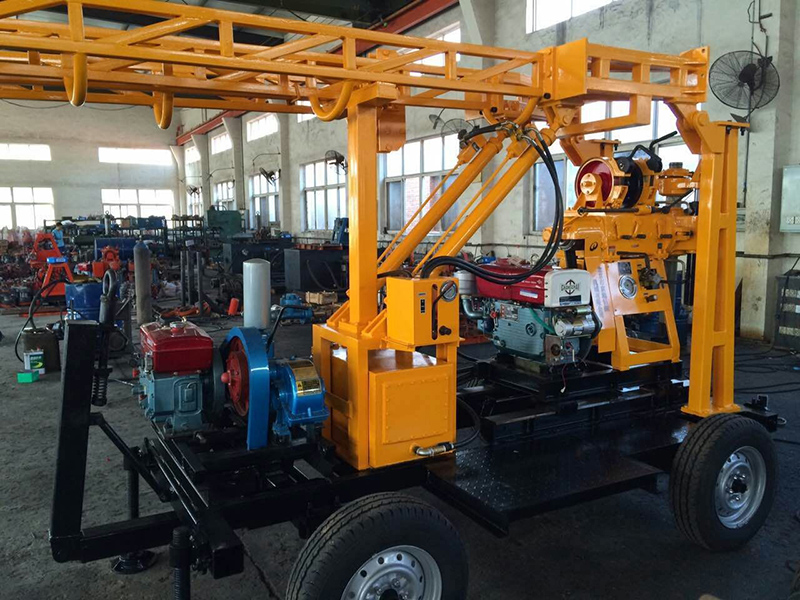

( Trailer type)

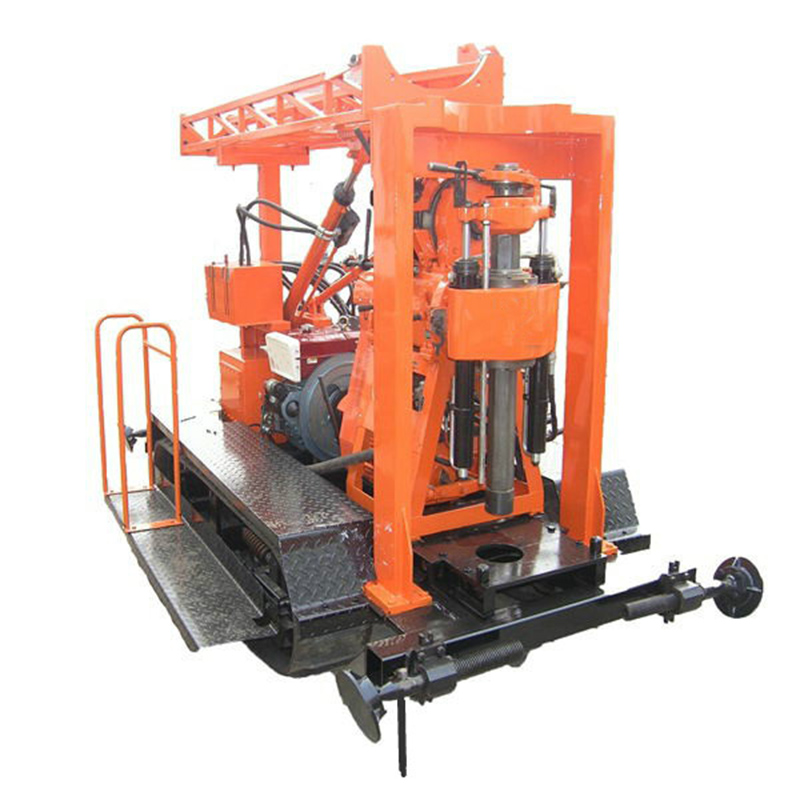

(Crawler Type)
