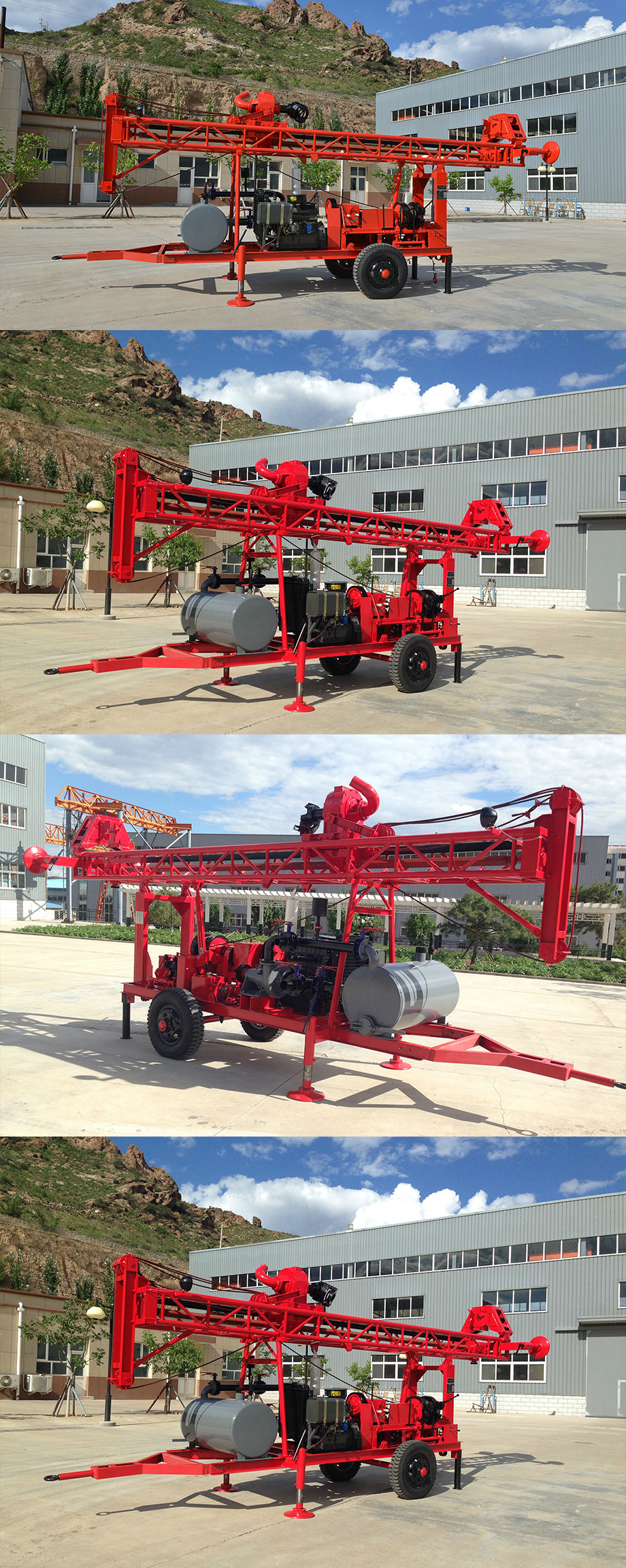

GL-Ⅱ Trailer Mounted Drilling Rig
Main Application
◆Drilling wells for urban and rural life
◆Drilling wells for agricultural irrigation and industries
◆Drilling for geotechnical survey
◆Drilling construction engineering holes
◆Drilling geothermal pump wells
Main Specification
|
Item |
GL-II Trailer Mounted Drill |
|
Hole Diameter (mm): |
90－1200 |
|
Hole Depth (m): |
150 |
|
Run of Rod (m): |
3 |
|
Drill Rod Diameter (mm): |
φ60、φ73、φ89、φ95、φ133 |
|
Drill Head Inside Diameter (mm): |
φ35、φ60、φ81、φ120 |
|
Rig Mass (kg): |
3400 |
|
Drilling Technology： |
Normaland Reverse Circulation for Both Mud and Air |
|
Down-The-Hole Hammers: |
Middle-High-Pressure Air |
|
Drill Head Lifting Speed (m/s): |
0.25 0.15 |
|
Drill Head Lifting Force(kN): |
55.4 94.55 |
|
Feed Thrust (kN): |
0－15 |
|
Drill Head Spin Speed (r/min) : |
A(Forward:13-22-48, Reverse:10-17-36) |
|
B(Forward: 48-84-184, Reverse: 37-65-142) |
|
|
Main Hoist Lifting Force (kN): |
18.54 |
|
Pump: |
LBN-20Normaland Reverse Circulation Pump Group |
|
Flow (m3/h): |
80 |
|
Power Unit: |
Diesel Engine |
|
Power(Kw): |
40 |
|
Mast Up and Down: |
Mechanical type |
|
Chassis: |
Trailer with two wheels |
|
Dimensions(mm): (L-W-H) |
Working Conditions: 4910*2020*6650 |
|
Transport status: 6700*2020*2750 |
