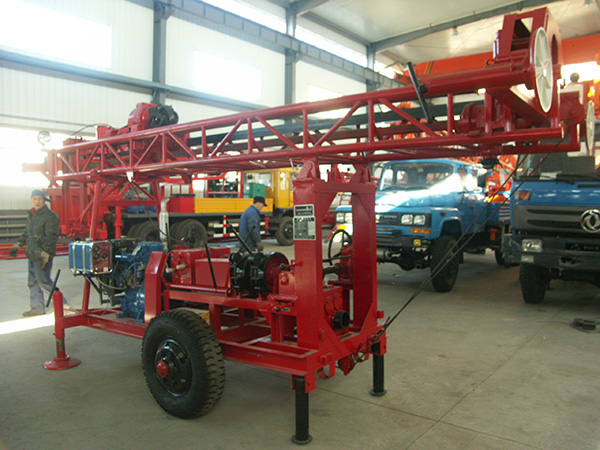

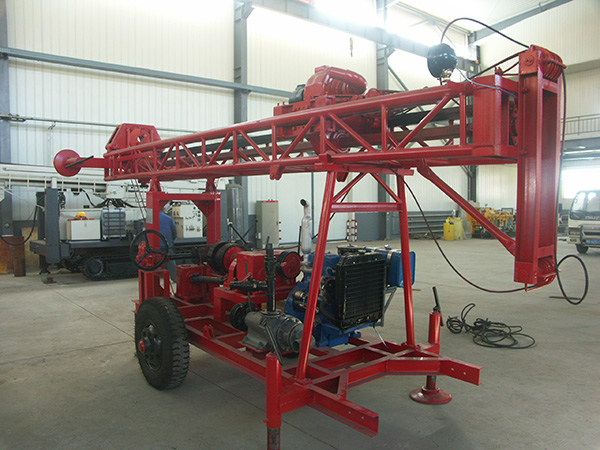

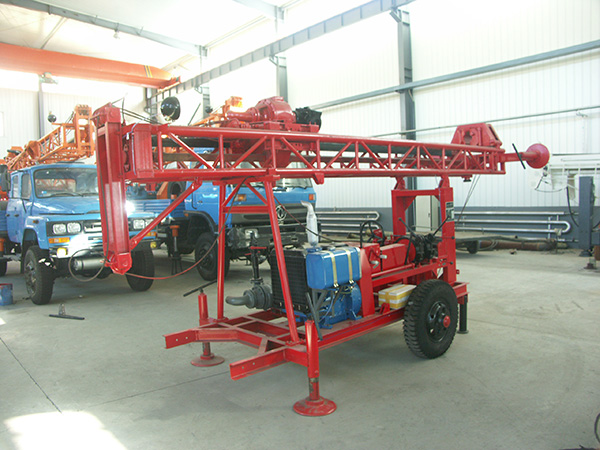

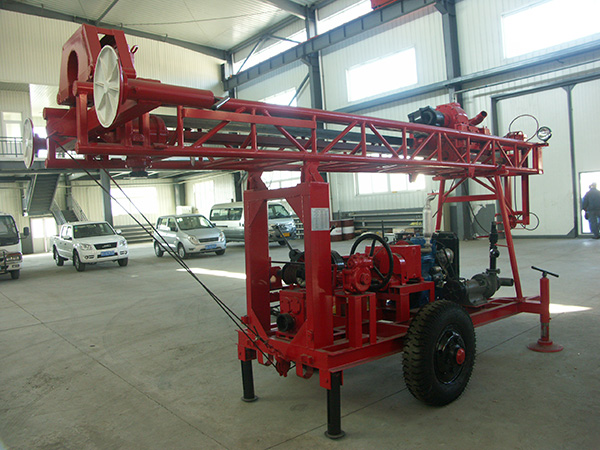

GL-I Trailer Mounted Drilling Rig
Main Application
◆ Drilling wells for urban and rural life
◆ Drilling wells for agricultural irrigation and industries
◆ Drilling for geotechnical survey
◆ Drilling construction engineering holes
◆ Drilling geothermal pump wells
Main Specification
| Hole diameter(mm):90-1000 | Dimensions(mm)(L-W-H)Working conditions |
| 4785×2020×5650 | |
| Hole depth(m):120 Max | Transport status(mm):6000×2020×2880 |
| Run Of Rod(m):3 | Supporting Form:Mechanical Screw |
| Drilling Technology：Normal and Reverse Circulation for both Mud and Air | Rig mass(Kg):2500 |
| Down-The-Hole hammers:Middle-High-Pressure Air | Chassis:Trailer with two wheels |
| Drill Head Inside Diameter ： φ35 φ60 φ80 | Power Unit： Diesel Engine |
| Drill Head Lifting Speed（m/s）： 0.25 0.15 | Power(kW)： 22 |
| Drill Head lifting Force(kN)： 55.40 94.55 | Pump :FSB-50 composite two-stage pump group |
| Drill Head Spin Speed: | Flow（m3/h）： 50 |
| A(Forward:14-30-66,Reverse (r/min）: 13-23-50 | Main Hoist Lifting Force(kN)： 18.54 |
| B(Forward:47-81-178,Reverse (r/min）: 36-62-137 | Feed Thrust（kN）： 0-15 |
| Notes: Drill head spin speed can be selected, A is normal. | |
