GLKD-150 underground drill rig
Specifications
underground drilling rig
1.hydraulic feeding for tunnel boring
2.small volume
3. quick to set up
4.easy to move

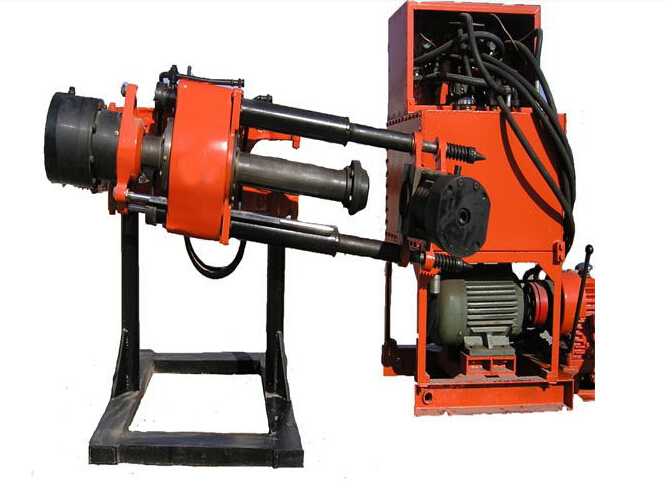

GLKD-150 Boring Rig is a type of machine with hydraulic feeding for tunnel boring, applicable to the exploration of metal mine,
nonmetallic mine and coal mine, and the hole drillings for grout, drainage and observation in the corridor at hydropower station.
Features:
1. With hydraulic automatic feeding device, elevated drilling efficiency, reduced labor strength
2. small volume, lightweight.
3. Using double pillar support, compact structure and small operation area occupancy
4. The boring machine and pump are driven separately, convenient for the arrangement at work site.
5. lightweight, high detachability, easy transportation and installation
| Technical Specifications | |
| Drill | |
| Drilling depth | 150m |
| Initial hole dia. | 91mm |
| Final hole dia. | 59mm |
| Drill rod dia. | 42mm |
| Angle range | 0°-360° |
| Drill dimensions(L×W×H) | 1405×800×2105 (mm) |
| Water pump dimensions(L×W×H) | 1100×480×850 (mm) |
| Swivel Head | |
| Spindle L.Dia | 52mm |
| Spindle speed(5-speed) | 140/295/470/790/1010r/min |
| Spindle stroke | 450mm |
| Upward displacement speed of idling vertical spindle | 0.05m/s |
| Downward displacement speed of idling vertical spindle | 0.067m/s |
| Spindle pull-down max | 15KN |
| Spindle lifting capacity max | 25KN |
| Hoist | |
| GLKD150 Max .lifting capacity(single rope) | 11KN |
| Hoisting drum linear velocity (two levels) | 0.255/0.51/1.02m/s |
| Drum dia. | 145mm |
| Wire rope dia | 9.3mm |
| Wire rope capability | 27m |
| Motor | |
| Model | Y160M-4 |
| Rated power | 11KW |
| Rated speed | 1460r/min |
| For explosion-proof requirements, an explosion-proof type motor shall be used(need to be specified in order) | |
| Water Pump | |
| Displacement max | 77L/min |
| Working pressure max | 1Mpa |
| Rated pressure | 0.7Mpa |
| Water pump motor | |
| Model | Y100L2-4 |
| Rated power | 3KW |
| Rated speed | 1430r/min |
| For explosion-proof requirements, an explosion-proof type motor shall be used(need to be specified in order) | |
| Oil pump | |
| Model | Gear pump |
| Model | YBC-12/80 |
| Rated pressure | 8Mpa |
| Displacement | 8ml/r |
| Rated speed | 1440r/min |
