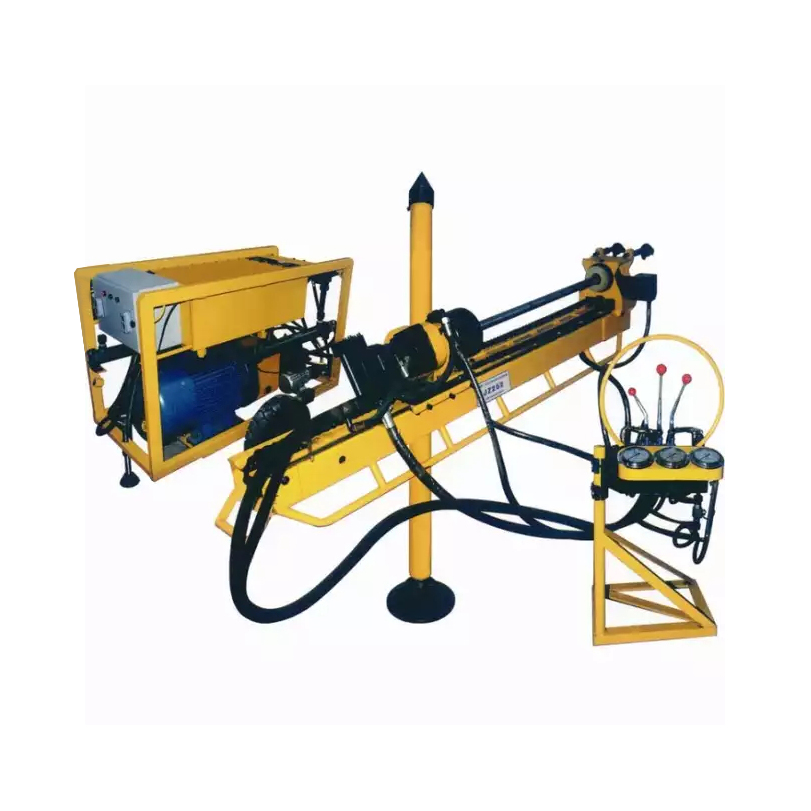

GLKD-1 Underground Drilling Rig
| Spindle Rotational speed | 280-900r/min | Spindle toque | 735Nm |
| Axial pushing force | ＞32KNa | Axial pulling force | ＞40KNa |
| Hydraulic system working pressure | 20MPa | Maximum pressure | 25MPa |
| Main pump maximum pressure | 31.5MPa | Auxiliary pump max. pressure | 25MPa |
| Power head stroke | 1600mm | Surface drilling angle | 0°-90° |
| Underground drilling angle | 0°-360° | Azimuth angle | 0°-360° |
| Motor power | 45kw | Motor rotational speed | 1480rpm |
| Machine body/size | 2620*600*750mm | Weight | 1335kg |
| Power unit | 1770*1000*1420mm | Weight | 805kg |
| Control panel | 700*400*1100mm | Weight | 80kg |
GLKD-1 Full Hydraulic Underground Drilling Rig Drilling Depth
| Bit O.D(mm) | Drill Rod O.D(mm) | Rod material | Downward | Horizontal | Upward |
| 75(NQ) | 69.9x4.8 | XZ850 | 300 | 250 | 150 |
| 59(BQ) | 55.6*4.8 | XZ850 | 400 | 350 | 250 |
| 47(AQ) | 44.5*4.8 | R780 | 500 | 450 | 350 |
| Note: The drilling depth data above is for reference only | |||||
