Our DTH hammer and bits are compatible with CIR, DHD,QL,SD,Mission, etc. series of Atlas and Sandvik etc. They are with high efficiency, low failure rate and long service life. Even for all kinds of high hardness, high abrasive rocks and other harsh conditions, our drilling tools can also realize efficient and economical drilling.

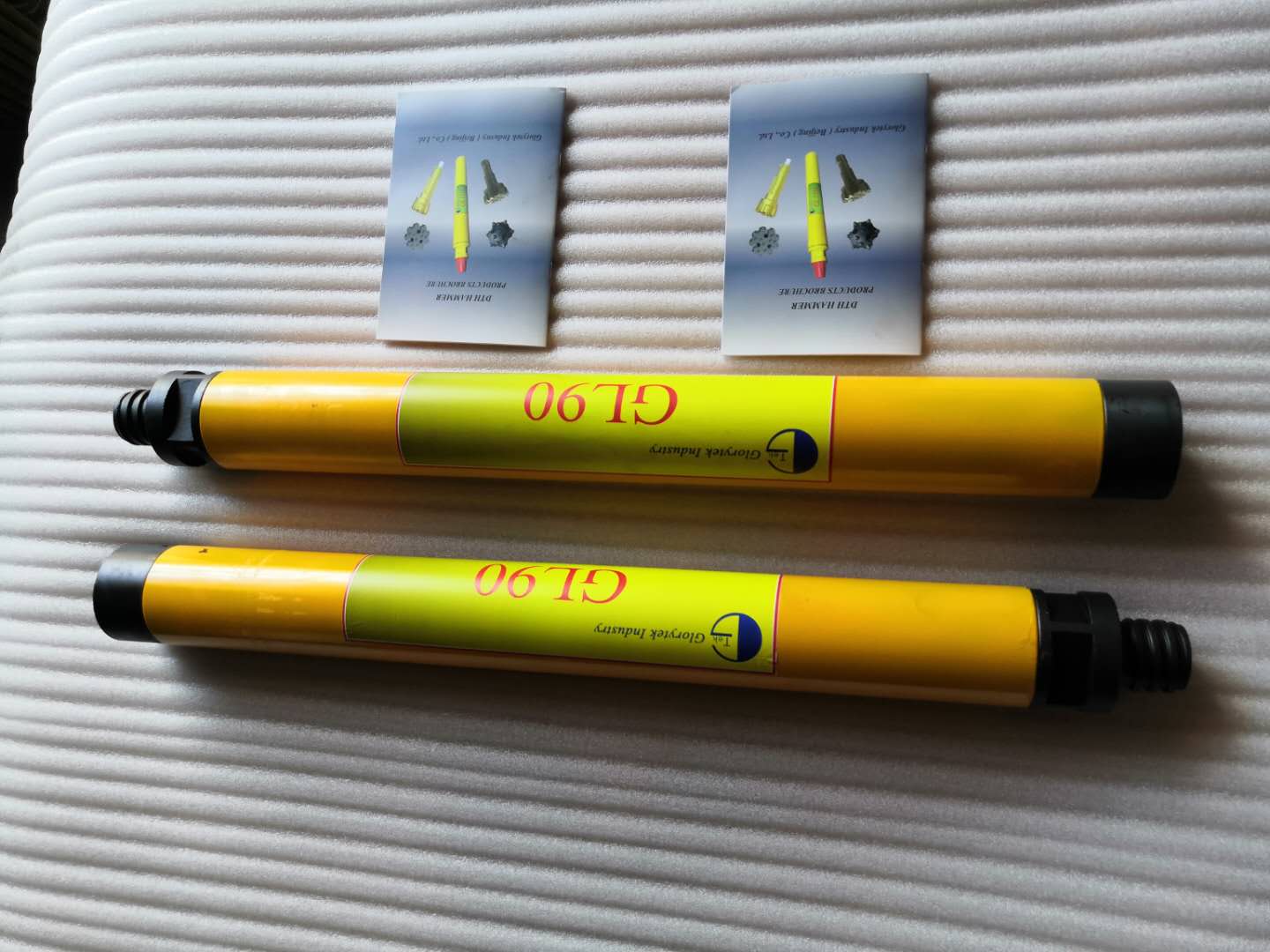

◆Type and Technical Specification of Low Pressure DTH Hammers
| Item | GL65B | GL70 | GL76 | GL80 | GL90 | GL90-1 | GL110 | GL150 | GL170 |
| Drilling Dia.(ф/mm) | 68-70 | 72-74 | 74-76 | 80-82 | 90-130 | 90-130 | 110-150 | 150-185 | 170-250 |
| Hammer Length(mm) | 745 | 803 | 766 | 796 | 796 | 796 | 838 | 908 | 1023 |
| Outside Dia.(ф/mm) | 61.2 | 67.2 | 67.2 | 72 | 80.2 | 80 | 98 | 137 | 156 |
| Weight(kg) | 13 | 14 | 15 | 17 | 20 | 20 | 30 | 75 | 90 |
| Working Pressure(Mpa) | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 |
| AirConsumption(M3/Min.) | 2.5 | 3 | 3 | 5 | 6 | 5.5 | 11 | 17 | 19.5 |
| Torque(N.M) | 51 | 70 | 75 | 81 | 110 | 120 | 180 | 340 | 420 |
| Impact Frequency (Times/Min.) | ≥810 | ≥810 | ≥810 | ≥800 | ≥820 | ≥820 | ≥830 | ≥800 | ≥790 |
| Connection 1 | M42×10×1.5P | DZ50 | M48×10×2P | M48×10×2P | M48×10×2P | M48×10×2P | API 2 3/8REG | API 3 1/2REG | API 3 1/2REG |
| Connection 2 | ф37-4 | ф43-6 | ф44-4 | ф50-6 | ф54-6 | ф54-6 | ф65-6 | ф90-6 | ф98-6 |
