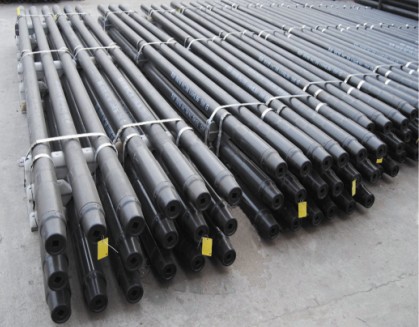

1. HDD Integrated Drill pipe

1. Material selection-with API standard and reliable performance.

2. The twice thickening molding technology of pipe joint makes the transition zone very stable and smooth which tremendously reduce the resistance of mud through the pipe.

3. With National initiative integral drill rod and intermediate-frequency heat treatment technology make this kind of product have the higher Mechanical Properties than the similar products.

4. Be treated by liquid nitrogen treatment process, the joint thread is deeper than the traditional processing technology which greatly prolong the service life of products.

Specification:

Drill Pipe					Tool Joint					Mechanical Property Tool Joint
Size	Grade	Normal	Wall	Upset	Thread	OD		ID		Tensile Yield Load		Torsion Yield		Bend Radius
		Weight	Thickness	Style		OD		ID		Tensile Yield Load		Torsion Yield		Bend Radius
		lb/ft	mm			in	mm	in	mm	ft-lb	N.M	ft-lb	N.M	ft	m
2	G	5.6	6.5	IEU	XD50	2 1/8	54	2 1/8	16	871	642	4375	5932	125	38
2	S	5.6	6.5	IEU	XD50	2 1/8	54	2 1/8	16	1120	826	5625	7626	154	32
2 3/8	G	6.65	7.11	IEU	XD60	2 3/4	69.8	1	25	1171	864	8751	11865	138	42
2 3/8	S	6.65	7.11	IEU	XD60	2 3/4	69.8	1	25	1506	1110	11251	15255	118	36
2 7/8	G	15.5	9.19	IEU	NC23	3 1/4	82.6	1 1/8	30	1775	1309	16176	21932	220	67
2 7/8	S	15.5	9.19	IEU	NC26	3 3/8	85.7	1 1/8	30	2282	1683	20798	28198	197	60
3 1/2	G	15.5	11.4	IEU	NC31	4 1/8	104.8	1 1/2	38	2644	1950	29520	40024	262	80
3 1/2	S	15.5	11.4	IEU	NC31	4 1/8	104.8	1 1/2	38	3399	2507	37954	51459	236	72
4	G	15.7	9.65	IEU	NC38	5	127	2 1/8	54	2449	2184	36134	48991	394	120
4	S	15.7	9.65	IEU	NC38	5	127	2 1/8	54	3149	2808	46458	62989	360	110

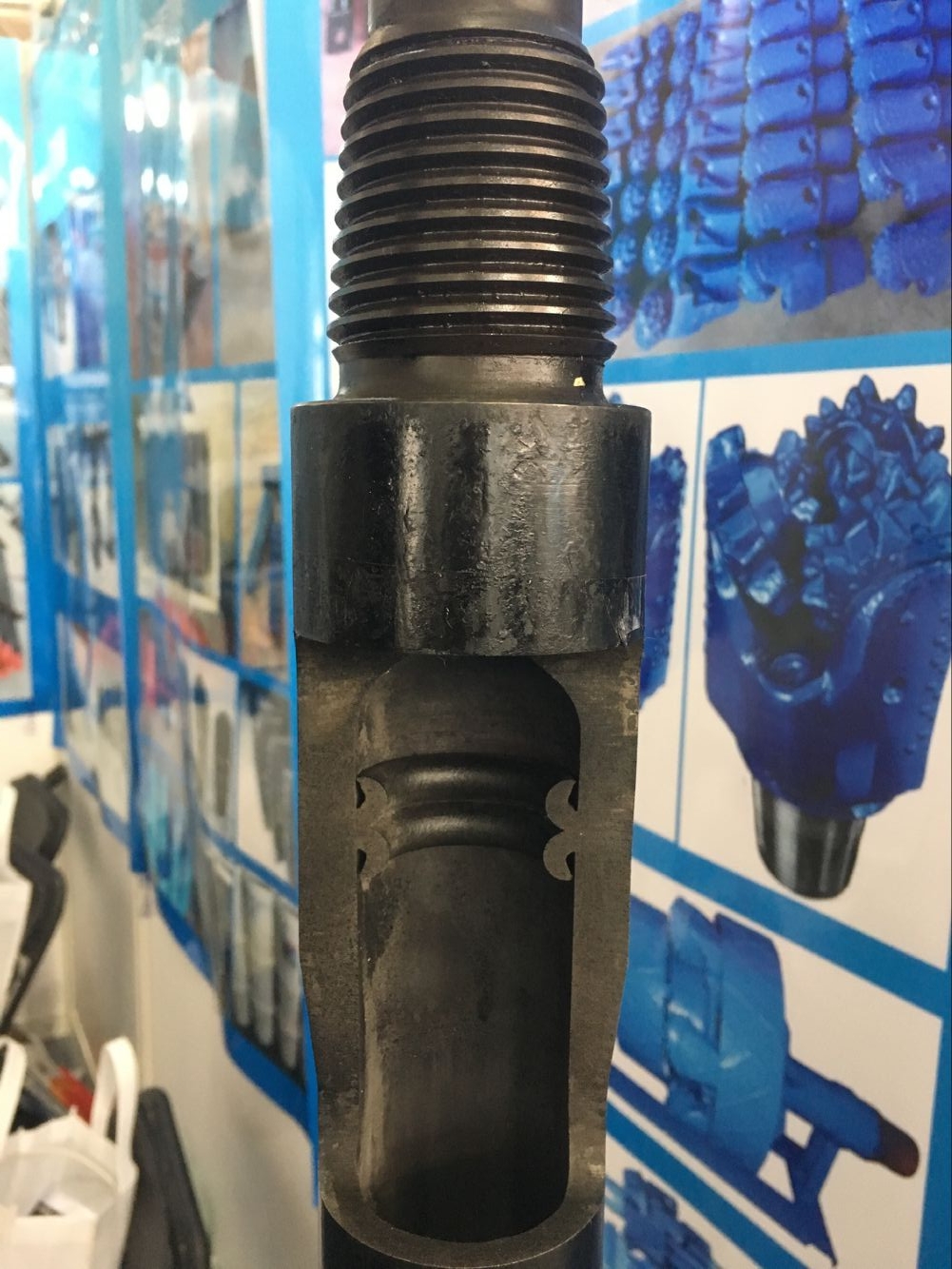

2. HDD Friction Welding Drill PipeThread type and the length of drill pipe can be manufactured according to users’ requirement.

1. Material adopts OCTG

2. Process of End-upsetting can meet the API 5D standard

3. After the heat treatment of thickened pipe, the steel grade can reach G105 or S135.

4. The forging process and heat treatment of the pipe joint can be up to API SPEC7-1 standard.

5. Welding area adopts ausforming process. Performance of welding line can reach the API SPEC 7 standard.

Technical Specification

Drill Pipe					Tool Joint					Mechanical Property Tool Joint
Size	Grade	Normal	Wall	UpsetStyle	Thread	OD		ID		Tensile Yield Load		Torsion Yield		Bend Radius
		Weight	Thickness			OD		ID		Tensile Yield Load		Torsion Yield		Bend Radius
		Lb/ft	mm			In	mm	In	mm	Ft-lb	N.M	ft-lb	N.M	ft	m
2	E	5.07	6.5	EU	XD50	2 1/8	54	2 1/8	16	622	459	3125	4237	164	50
	G			EU	XD50	2 1/8	54	2 1/8	16	871	642	4375	5932	125	38
	S			EU	X50	2 1/8	54	2 1/8	16	1120	826	5625	7626	154	32
2 3/8	E	6.65	7.11	EU	XD60	2 3/4	69.8	1	25	836	617	6250	8474	197	60
	G			EU	XD60	2 3/4	69.8	1	25	1171	864	8751	11865	138	42
	S			EU	XD60	2 3/4	69.8	1	25	1506	1110	11251	15255	118	36
2 7/8	E	8.67	7.82	EU	NC23	3 1/4	82.6	1 1/8	30	1145	844	9243	12532	239	73
	G			EU	NC23	3 1/4	82.6	1 1/8	30	1602	1181	12941	17546	213	65
	S			EU	NC23	3 1/4	82.6	1 1/8	30	2060	1519	16638	22558	190	58
2 7/8	E	10.4	9.19	EU	NC23	3 1/4	82.6	1 1/8	30	1268	935	11554	15665	246	75
	G			EU	NC23	3 1/4	80.6	1 1/8	30	1775	1309	16176	21932	220	67
	S			EU	NC26	3 3/8	85.7	1 1/8	30	2282	1683	20798	28198	197	60
3 1/2	E	13.3	9.35	EU	NC31	4 1/8	105	1 1/2	38	1662	1226	18551	25152	295	90
	G			EU	NC31	4 1/8	105	1 1/2	38	2327	1716	25972	35213	246	75
	S			EU	NC38	5	127	2 1/8	54	2992	2207	33392	45273	220	67
3 1/2	E	15.5	11.4	EU	NC38	5	127	2 1/8	54	1889	1393	21086	25889	312	95
	G			EU	NC38	5	127	2 1/8	54	2644	1950	29520	40024	262	80
	S			EU	NC38	5	127	2 1/8	54	3399	2507	37954	51459	236	72
4	E	14	8.38	IU	NC38	5	127	2 1/8	54	1749	1290	23288	31574	459	140
	G			IU	NC38	5	127	2 1/8	54	2449	1806	32603	44204	394	120
	S			IU	NC38	5	127	2 1/8	54	3149	2323	41918	56833	360	110
4 1/2	E	16.6	8.56	IEU	NC38	5	127	2 1/8	54	1974	1456	30807	41769	558	170
	G			IEU	NC38	5	127	2 1/8	54	2764	2039	43130	58476	492	150
	S			IEU	NC40	5 1/2	139.7	2 1/4	57	3553	2621	55453	75184	459	140
5	E	19.5	9.19	IEU	NC50	6 5/8	168.3	3 3/4	95.2	2457	1812	41167	55815	623	190
	G			IEU	NC50	6 5/8	168.3	3 1/4	82.6	3440	2537	57633	78140	574	175
	S			IEU	NC50	6 5/8	168.3	2 3/4	69.8	4423	3262	74100	100466	525	160
5 1/2	E	24.7	10.54	IEU	5 1/2FH	7 1/4	184.2	3 1/2	101.6	3122	2303	50710	68754	689	210
	G			IEU	5 1/2FH	7 1/4	184.2	3 1/2	88.9	4372	3225	70994	96255	623	190
	S			IEU	5 1/2FH	7 1/2	190.5	3	76.2	5622	4146	91278	123756	590	180
6 5/8	E	27.7	9.19	IEU	6 5/8FH	8	203.2	5	127	3314	2444	76295	103442	787	240
	G			IEU	6 5/8FH	8 1/4	209.6	4 3/4	120.7	4640	3422	106813	144819	722	220
	S			IEU	6 5/8FH	8 1/2	215.9	4 1/4	7.95	5966	4400	137330	186194	656	200
