1.General

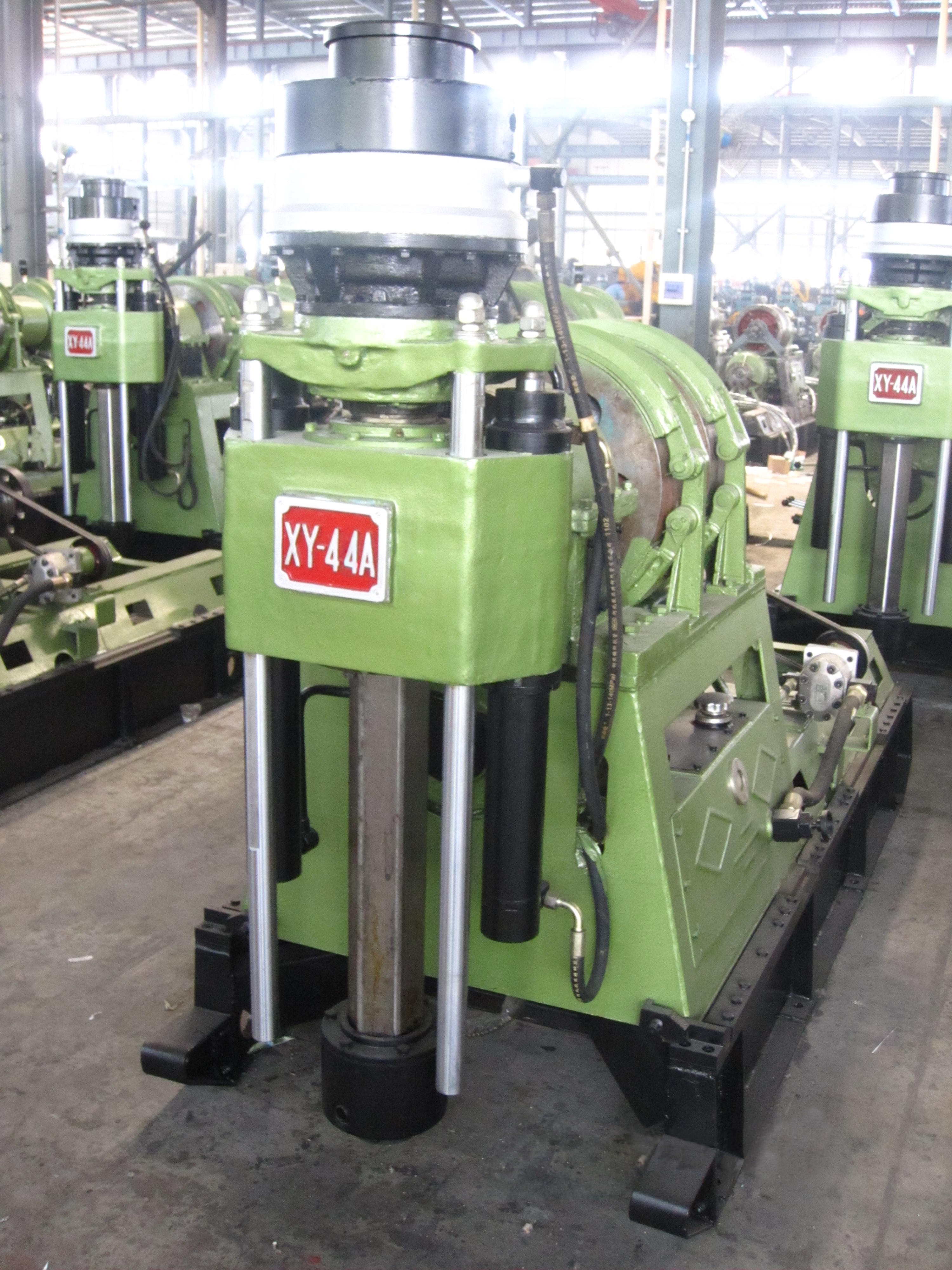

XY-44A Core Drill, a new type of product with enhanced capa city, is a kind of hydraulic-driven, spindle, diamond-bit, small-diameter core drill with fairly powerful drilling force. It is mainly s uitable for exploration of metal or non-metal solid mineral ore bed. It is widely a pplied in core drill with diamond bit or hard tungsten-carbide-tipped bit and diamond bit in the field of geology, metallurgy, coal mine, hydrological and engineering drilling. It can also be used in the fields of superficial-zone petroleum and natural gas mining, mine workings ventilati on and water discharge tunnel drilling as well as founda tion pile construction in large diameter. It is in reasonable structure, light weight, powerful capacity, multiuse, steady performance, high responsibility and high standardization and generalization.
2. Main Features of XY-44A drill
1. There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 8000 N•m . The drill is adapted on core drilling with tungalloy-carbid-tipped and diamond oil as well a s engineering geology exploration, hydrology well drilling and basic pile engineering.
2. With large spindle I.D. 93mm(3.66 inch), the drill is fed with double hydraulic cylinders with much longer stroke up to 600mm(23 .62 inch). With strong technological adaptability, the rig can be a dapted on many field, especially on large diameter drill rod drilling, (upper part coring) extracting core with wire line. Thus it is more effective in i mproving dri lling effici ency with less faulty in hole.
3. With powerful drilling capacity, the rated drilling depth comes up to 1,000m(3 9.37 inch) with 71mm(2.80 inch) wire-line coring drill rod.
4. Light in weight, and in fine dismountability, the rig can be dismantled into ten parts easily, the biggest apparatus is in 300 kg (661.5 lb). The whole drill is in 2300kg, it can be moved easily especially in mountain area.
5. The hydraulic chuck adopts one-way oil supply, with large clamping force and stable clamping.
6. Equipped with a water brake for steady and smooth deep hole drilling .
7. Supplying oil with a simplex gear pump, it is easy for installation and operation; lower in energy consumption and in low oil temperature of hydraulic system; the rig is for sure in steady drilling. The hand-operated oil pump can be put in use to hoist the drilling tools in hole upon the power engine failing to operate.
8. With compact structure and reasonable layout, with all components exposed, and with non overlapped ones, it is convenient for maintenance.
9. With low center of gravity and long travelling distance up to 460mm(18.1 inch), the rig is reliable and stable in high speed drilling.
10. It is easy to get to know the conditions in hole with an antivibration meter. Less in operating handles, the rig can be operated credibly and flexibly
3. Specifications
1. Drill Capacity
1). Core Drilling
| Drill Rod Varieties | Drill Rod Type | Drill Depth | |
| Drill Rod Made in China | Planer in and out | Ф43×6mm(Ф1.69×0.24 inch) | 1400 m (4592feet) |
| Ф54×6 mm(Ф2.13×0.24 inch) | 1000 m (3280feet) | ||
| Ф67×6 mm(Ф2.64×0.24 inch) | 830 m (2722feet) | ||
| Ф50×5.5 mm(Ф1.97×0.22 inch) | 1300 m (4264feet) | ||
| Ф60×6 mm(Ф2.36×0.24 inch) | 950 m (311 6feet) | ||
| Ф55.5×4.73mm(Ф2.19×0.19inch) | 1400 m (4592feet) | ||
| Ф71×5 mm(Ф2.80×0.20 inch) | 1000 m (3280feet) | ||
| Ф89×5 mm(Ф3.50×0.20 inch) | 800 m (2624feet) | ||
| DCDMA (Diamond Core Drill Association) made Drill Rod |
Thickened Inner | BW | 1250 m (4100feet) |
| NW | 1000 m (3280feet) | ||
| HW | 660 m (2165feet) | ||
| Extracting Core Eith Wire Line | BQ | 1400 m (4592feet) | |
| NQ | 1100 m (3608feet) | ||
| HQ | 750 m (2460feet) | ||
2). Hydrogeology Well Drilling
| Drill Rod Type | Drilling Hole Dia. | Drilling Depth |
| 6 0mm(2.36 inch)(Thickened outer) | 200 mm (7.87 inch) | 800 m (2624 feet) |
| 7 3mm(2.87 inch)(Thickened outer) | 350 mm (13.78 inch) | 500 m (1640 feet) |
| 89mm(3.5 inch)(Thickened outer) | 500 mm (19.69 inch) | 300 m (984 feet) |
3). Foundation Pile Drilling
Drilling hole dia. with 89 mm(3.50 inch) outer thickened drill rod.
Loose formation ------------------------------------1000 mm (39.37 inch)
Hard formation ------------------------------------600 mm (23.62 inch)
Drilling Depth ------------------------------------100 m (328 feet)
2. Drilling Angel ------------------------------------ (0°﹣360°)
3. Power Engine
| Electromotor | Y225S-4 | 37KW(49.62HP) | 1480 r/min |
| Diesel engine | CA4110/125 | 84KW | 2800 r/min |
4. Rotator
Type: Feeding with double oil cylinders hydraulic pressure, rotating mechanically.
Spindle I.D ------------------------------------93 mm (3.66 inch)
Speed of spindle:
| Speed of Power eng. (r/min) | 1480 (electric motor) | 2800(diesel engine) |
| Positive Low Speed (r/min) | 50、80、139、227、316、401 | 60、90、166、272、379、481 |
| Positive High Speed (r/min) | 53、247、429、696、970、1230 | 183、296、514、835、1164、1476 |
| Negative Speed (r/min) | 53、165 | 63、198 |
Max. Torque of spindle ------------------------------------8000KN•m
Spindle stroke ------------------------------------600 mm (23.62 inch)
Max. lifting force of spindle ------------------------------------120 KN (26976 lbf)
Max. thrust of spindle ------------------------------------90 KN (20232 lbf)
5. Hoist
Form planetary gearing
Wire rope dia. ------------------------------------17.5 mm(0.69 inch) or 18.5 mm(0 .73 inch)
Drum capacity for rope(170 kg/mm equivalent to 2418 39 lb/inch ) ------------------------------------ (17.5mm steel wire rope) 110m(360.8 feet)
(18.5mm steel wire rope) 90m(2 95.2 feet)
Max. lifting force (single rope) ------------------------------------45 KN (10116 lbf)
Lifting speed of the wire rope
Power eng speed 1480r/min 0.70; 1.29; 1.84; 2.68 m/s (2.30; 4.23; 5.90; 8.79 feet/s)
6. Clutch
Form: Dry single chip friction clutch
7. Gearbox
Form: sliding gearbox (6 speeds are positive and 1 is negative).
8. Oil Pump
Form: Single Gear Pump
Displacement ------------------------------------20ml /r
Working pressure ------------------------------ 20MPa
Max. pressure ------------------------------------25 MPa
9. Water Brake
Working speed (r/min) -----------------------------------700—800
Single rope compensational speed----------------------3—8 m/s (9.84-26.2 feet/s)
Single rope compensational load-----------------------45 KN (10116 lbf)
10. Drill Frame
Form sliding skids type (with sliding base)
Drill backward stroke -----------------------------460 mm (18.11 inch)
11. Dimensions (L×W×H) ----------------------------3050×1100×1920 mm
12. Weight of drill (without power unit) ----------------about 2300 kg
