Advantagement
Weighted less: Integration of oil cylinder and guide rail; Aluminium alloy ground beam; Faster: The doubling mast mechanism helps drilling faster and achieving better concentricity of coordinate cones, better stability and longer penetration.

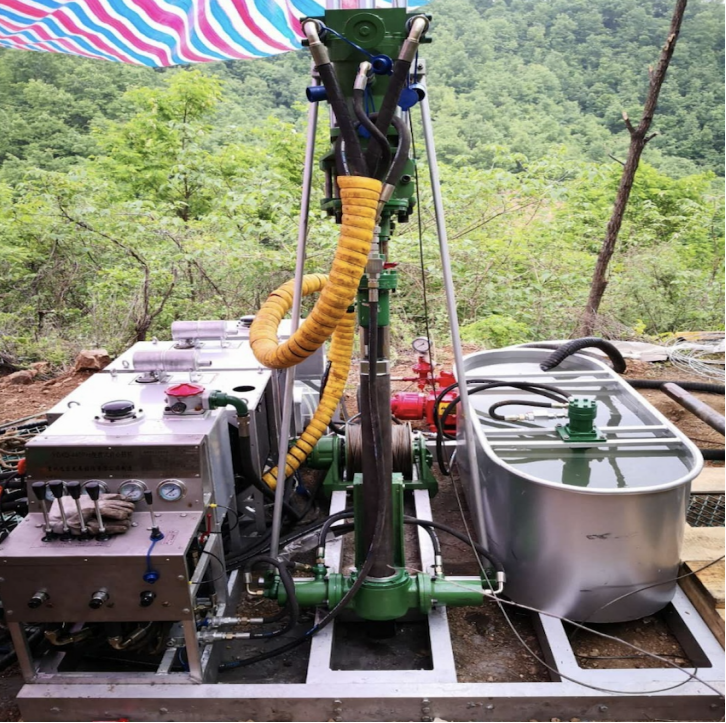

More fuel-efficient: Thread compensation makes drill pipe more durable. Variable pump and motor are more in line with any drilling conditions. Only 1 liter of oil is needed for 1 meter1 s drilling, to which three self-developed patent technologies are applied such as oil cylinder guide rail device, doubling mechanism device and thread compensation device. Portable Diamond-core Rigs
| Models | GL-1080 | GL-780 | GL-580 | GL-380 | |||
| Technical Parameters | |||||||
| Drilling Capacity | Rod | Core Diameter | (M) Drilling Depth | (M) Drilling Depth | (M) Drilling Depth | (M) Drilling Depth | |
| BTW | 42mm | 1404 | 1404 | 754 | 494 | ||
| NTW | 56mm | 1080 | 780 | 580 | 380 | ||
| HTW | 71mm | 540 | 390 | 290 | 152 | ||
| PQ | 84mm | 216 | 117 | 87 | |||
| Hydraulic System The variable pump(rexroth) | (mpa) Presure | 28 | 28 | 28 | 28 | ||
| Cooling | Water-cooling | Water-cooling | Water-cooling | Water-cooling | |||
| (kg) Weight | 29*4 | 29*3 | 29*2 | 29 | |||
| (kg)The hydraulic oil tank Weight | 45 | 32 | 23 | ||||
| (kg) Work station Weight | 150 | 120 | 105 | 90 | |||
| Kubota engine | Model | Kubota V1505-T | Kubota^/1505-T | Kubota V1505-T | Kubota V1505-T | ||
| Power(kw) | 130 (4) | 97.5(3) | 65⑵ | 32.5(1) | |||
| (RPM) Engine RPM | 3000 | 3000 | 3000 | 3000 | |||
| (kg) Weight | 4*190 | 3*190 | 2*190 | 190 | |||
| Drilling Head Rexroth variable motor | (NM) Max Torque | 1100 | 1000 | 712 | 508.8 | ||
| (RPM) Max Rotation RPM | 2000 | 2000 | 2000 | 1200^^ | |||
| (mm) Feed | 1800 | 1800 | 1800 | 1800 | |||
| (M) Rod Length | 1.5 | 1.5 | 1.5 | 1.5 | |||
| (kN) Single cylinder Pull/Thrust | 196/100 | 159/81 | 126/66 | 78/38 | |||
| (kg) Motor Weight | 103 | 103 | 74 | 74 | |||
| (kg) Housing Weight | 64 | 64 | 55 | 55 | |||
| Wire-lline Winch | (kN) Pull | 15(Empty drum) | 13(Empty drum) | 13(Empty drum) | 11(Empty drum) | ||
| (M/min) Pulling Speed | 110(Empty drum) | 110((Empty drum) | 110(Empty drum) | 110(Empty drum) | |||
| (mm) Rope Diameter | 6 | 6 | 6 | 6 | |||
| (M) Rope Length | 1100 | 800 | 600 | 400 | |||
| (kg) Weight | 65 | 53 | 36 | 26 | |||
| Mast oil cylinder | (M) Length | 3.1 | 3.1 | 3.1 | 3.1 | ||
| Drilling Angle | 45°-90° | 45°-90° | 45°-90° | 45°-90° | |||
| Level Hole(optional) | 0-10° | 0-10° | 0-10° | 0-10° | |||
| (kg) Weight | 150 | 100 | 80 | 63 | |||
| Foot Clamp | Fit Rod | BTW/NTW/HTW/PQ | BTW/NTW/HTW/PQ | BTW/NTW/HTW/PQ | BTW/NTW/HTW/PQ | ||
| (kg)Weight | 79 | 69 | 59 | 55 | |||
| Mud pump | (L/min) /(Mpa) displacement/Mpa | 150/6 | 110/6 | 80/6 | 45/6 | ||
| Transporting Dimentions | Rig Base(length*width)(mm) | 3500x2680 | 2840x2680 | 2600x2300 | 2240x2100 | ||
| (kg) Max Weight of the Biggest Unit Separated | 190 | 190 | 190 | 190 | |||
| (kg)Total Weight of Rig | 1215 | 1215 | 909 | 583 | |||
| Weight of other | (kg) Mud pump Weight | 125 | 125 | 125 | 125 | ||
| (kg) water tank Weight | 32 | 32 | 32 | 32 | |||
| (kg) diesel power supply | 83 | 83 | 83 | 83 | |||
| (kg) Aluminium alloy ground beam | 130 | 130 | 105 | 80 | |||
