◆Cutting Structure▼
Tungsten Carbide Inserts: Various type high quality tungsten carbide inserts can be equipped on the bits, professional and scientific selection of the inserts as per the different application and drilling process to achieve high efficient drilling production.
◆Gauge Structure ▼
Multiple gauge protection with gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability.
◆Bearing Structure ▼
Air cooling roller bearing package. Balls lock the cone, which reduces the probability of cone-dropping to minimum.
◆ IADC
vary from 512--732 applicable for mining.

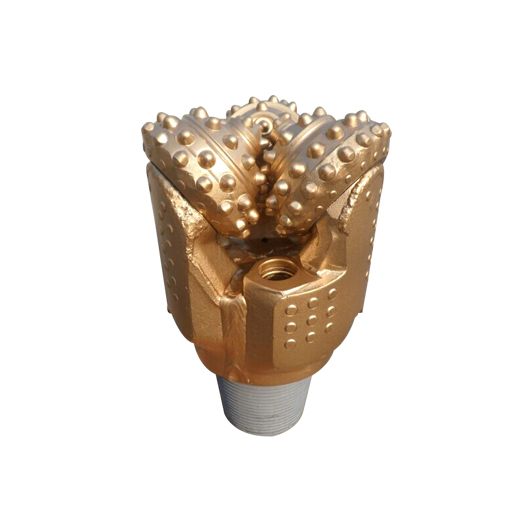

| Product | Tricone Bit |
| Model | TCI BIT, STEEL TOOTH BIT |
| IADC CODE | 116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347 |
| 417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535 | |
| available sizes | From 2 7/8 to26” larger sizes for hole opener bit ,reamer bit |
| advantage | most favorable price and best quality |
| bearing type | 1.sealed bearing and non-sealed bearing |
| 2.metal sealed journal bearing | |
| 3.rubber sealed journal bearing | |
| 4.aircooled bearing type | |
| Formation or layer | soft ,medium soft ,hard, medium hard, very hard formation |
| Button size (extra features) | Button bit,saw teeth |
| 1. Y-Conical teeth | |
| 2. X-chisel teeth | |
| 3.K- wide teeth | |
| 4.G- Gague protection | |
| Packing | Wooden case |
| Delivery terms | By sea or by air |
| Market | Canada,USA, Middle east ,Africa,Europe |
| Application | Petroleum & gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work |
