HDD-45/96 Horizontal Directional Drilling Rig
HDD-45/96 Horizontal Directional Drilling Rig

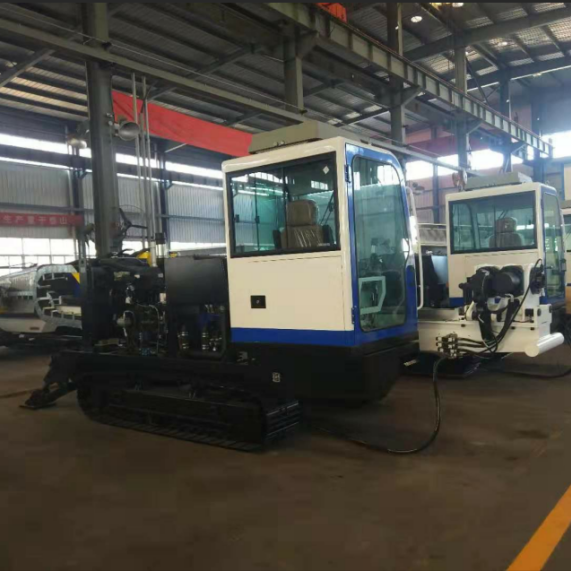

HDD-45/96 Horizontal Directional Drilling Rig is an all-in-one fully self-loading design, with open loop and hydraulic control mode drill rig. The hydraulic system, transmission system, reducer, electrical control system and other main components are all China well-known brand products, which is high reliability.
Specificationcation
1.Chassis
HDD-45/96 adopts steel track self-propelled chassis, which has strong site adaptability and high reliability; It equips with China famous brand walking reducer, stable performance and reliable quality.
| Track Wheelbase: |
1850mm |
| Outer track width: |
2300 mm |
| Track width: |
450 mm |
| Gauge: |
1400 mm |
| Walking reducer: |
TBM22 |
| Gradeability: |
30% |
| Walking speed: |
1.5km/h |
| Weight: |
16t |
2.Diesel Engine system
Use Cummins turbocharged diesel engine with strong power and emission meeting the third stage of China.
| Engine Model |
QSC8.3-C260-30 |
| Rated Power |
194KW |
| Max Torque |
1135N·m /(1 350r/min) |
| Rated Speed |
2200 r/min |
| Emission Standards |
China Stage III |
| Fuel tank volume |
350L |
3.Hydraulic System
Both rotation and push-pull use an open hydraulic system. China well-known brand components, the quality is reliable.
| Power head rotation system |
| Rotary pump: |
90R100（Sauer） |
| Pressure: |
350bar |
| motor: |
MHP20(Poclain) |
| Power head push-pull system |
| Push-pull pump |
HP1VO95LRDS（HIGH-TECH） |
| Pressure |
350bar |
| Motor: |
A6V107*4（HIGH-TECH） |
| Hydraulic oil tank volume： |
400L |
| Hydraulic oil： |
HD46 (-15℃～40℃) |
4.Electrical System
Voltage:C24V
Push-pull rotary handle: 2SK6L/98-3X01ZQ1Q2F4
Swivel handle: 2SK6T1/98-3X01ZF1F2Z4
Travel switch:N/A
5.Drill Frame
The front support and rear support cylinders are used for simultaneous luffing, the angle adjustment operation is simple and the scope is large.
Drill frame adjustment angle: 0～24°
6.Power Head
The drilling rig completes the push and pull action through the rack and pinion;Spindle floating can effectively protect the drill pipe thread; Variable motor can realize high-speed push and pull.
Maximum push-pull force: 960kN
Maximum push-pull speed 32m/min
Maximum rotating torque 25000 N·m
Maximum rotating speed 110/55r/min
Maximum stroke of power head: 3800mm
Rotary reducer:N/A
Push-pull reducer: Made in China
7.Clamp
The drilling rig is equipped with a rotating self-centering clamp and shackle, which can clamp the drill pipe firmly, and it is easy to maintain and replace the jaws.
Shackle torque 45000N·m
Shackle rotation angle 20°
8.Cab
The drill rig has rotating anti-noise cab, adjustable seat, equipped with heating and cooling air-conditioning, which is greatly improved the operating comfort of the drilling rig.
Internal lighting, windshield wipers, high-end leather seats and other configurations are suitable for operation.
Cab width 950mm
Cab length 1200mm
9.Drill Pipe, drilling tools( optional)
The drill rig can work with standard oil drill pipe or hdd drill pipe.Drill pipe thread:API NC31.
Back reamer: fluted back reamer, Drum back reamer and Plate-type back reamer are all available.
Remarks: The maximum push-pull force and maximum torque that the drill pipe can withstand cannot reach the maximum at the same time. In order to avoid sticking during use of the drill pipe,please observe the maximum connection torque limit in use of the drill pipe
Main Technical Parameters
| Item |
Parameter |
| |
Manufacturers |
Cummins |
| |
Model |
QSC8.3-C260-30 |
| Engine |
Power rating |
194KW |
| |
Max pull/thrust force |
960KN |
| Thrust-Pull |
Max pull/thrust speed |
32m/min |
| |
Torque |
25000N.m |
| Rotation |
Max spindle speed |
110r/min |
| Pipe |
Diameter × Length |
φ 89*3000 |
| Max inclination angle |
24 |
| Loader Crane |
Lifting weight |
N/A |
| Travel driving |
Style |
Steel crawler self-propelled |
| Traveling speed |
1.5 km/h |
| Weight |
12t |
| Dimension |
L×W×H |
7.5*2.3*2.6 |
| Rotary pump |
90R100（Sauer） |
| Push pump |
HP1VO95LRDS（HIGH-TECH） |
| Rotary Motor |
MHP20（Poclain） |
| Rotary reducer |
N/A |
| Push Motor |
A6V107*4（HIGH-TECH） |
| Push reducer |
MN2E295C1G31.25-A107 |
| Main valve |
hvsp15（Hengli） |
| Handle |
2SK6T1/98-3X01ZF1F2Z4 |
| Handle |
2SK6T1/98-3X01ZF1F2Z4 |
| Walking speed reducer |
JT08VK |
| Hydraulic cylinders |
/ |
| Lorry crane |
2.3t |
| Hydraulic tubing |
manuli |
